Home > DiPosDuo > MNHU06_PH - Insert for SS/Hi-Temp/Ti > 6153463 MNHU060316R-PH IN2505

EDP: 6153463

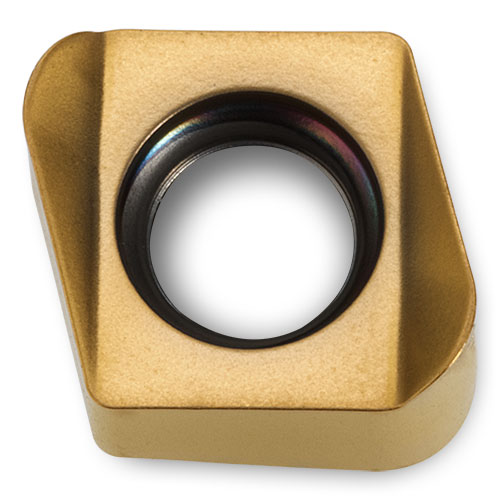

Part: MNHU060316R-PH IN2505
Series: MNHU06_PH - Insert for SS/Hi-Temp/Ti

Application

SS/Hi-Temp/Ti

RE Corner Radius

0.062

LE Cutting Edge Eff. Length

0.210

INSL Insert Length

0.260

W1 Insert Width

0.260

S Thickness

0.180

NOI Number of Indexes

4

IH Insert Hand

Right

Available : 120
International: 2267

Product Series Features:

Keen edge for SS/Hi-Temp/Ti
Pressed rake face geometry promotes efficient chip formation
4 Indexes

Application	SS/Hi-Temp/Ti
RE - Corner Radius	0.062
LE - Cutting Edge Eff. Length	0.210
INSL - Insert Length	0.260
W1 - Insert Width	0.260
S - Thickness	0.180
NOI - Number of Indexes	4
IH - Insert Hand	Right
