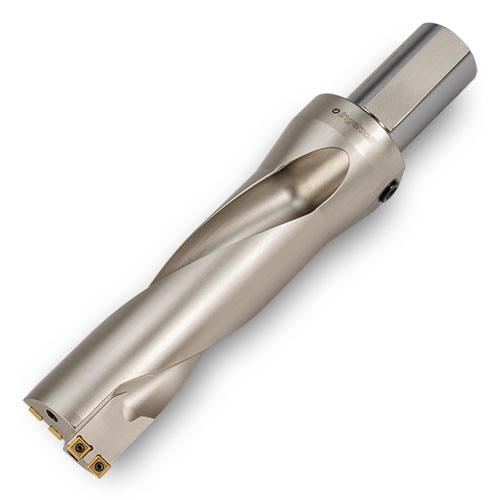

EDP: 6181062 Part: QF0508152N7R01 Series: QF - 3xD Indexable Flat Bottom Drill
View STEP
Available : 3
Product Series Features:
- Ø.626-2.000"
- Universal Shank
- Square Inserts
Notes:
- No X-axis Offsetting in a Stationary Application
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7010015 | SM25-064-00 | SM25-064-00 | Screw, M2.5 × 0.45 × .25", T8 Torx drive | n/a | n/a | n/a | ||
| 7000075 | DS-T08W | DS-0020 | T8 Wing Style Torx Driver | n/a | n/a | n/a | ||
| 7009044 | PP-04-01 | PP04-01 | Plug for Flange Port, 1/4-18 NPTF, 1/4" Hex | For Stationary Applications for Quad Twist, Quad Drill+, Spade Twist & Gold Twin with 1.25" and 1.50" Shanks. | n/a | n/a | n/a |
