Home > DiPosDuo > MNHU06 - Multi-Purpose Insert > 6182498 MNHU060312R IN2505

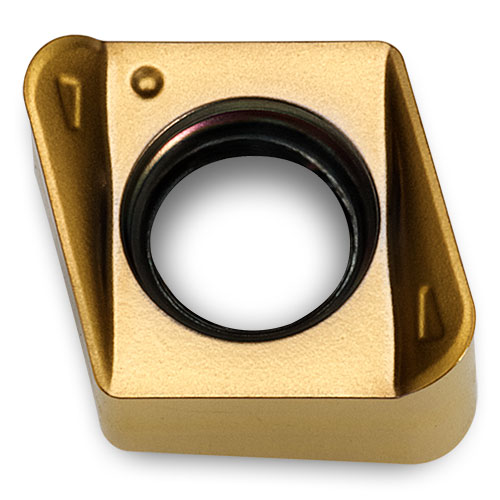

EDP: 6182498
Part: MNHU060312R IN2505
Series: MNHU06 - Multi-Purpose Insert

Application

Multi-Purpose

RE Corner Radius

0.047

LE Cutting Edge Eff. Length

0.220

INSL Insert Length

0.260

W1 Insert Width

0.260

S Thickness

0.177

NOI Number of Indexes

4

IH Insert Hand

Right

Available : 20
International: 1131

Product Series Features:

Pressed rake face geometry promotes efficient chip formation
Designed for multiple materials and applications
4 Indexes

Application	Multi-Purpose
RE - Corner Radius	0.047
LE - Cutting Edge Eff. Length	0.220
INSL - Insert Length	0.260
W1 - Insert Width	0.260
S - Thickness	0.177
NOI - Number of Indexes	4
IH - Insert Hand	Right

Choose a Section

DiPosDuo
1TJ1D - 90° Backdraft & Hi-Feed End Mill

Ø.750-1.500"
TopOn Connection
6 mm Insert with 4 indexes
Insert corners: .015" .031" .039" .047" .059" .062".079" R & Hi-Feed
32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper
Backdraft insert option to reduce vibration for long reach applications
.24" Depth of cut

DiPosDuo
1TJ1D - 90° Backdraft & Hi-Feed End Mill

Ø.625-1.500"
Cylindrical Shank
6 mm Insert with 4 indexes
Insert corners: .015" .031" .039" .047" .059" .062".079" R & Hi-Feed
32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper
Backdraft insert option to reduce vibration for long reach applications
.24" Depth of cut

DiPosDuo
1TJ1D - 90° Backdraft & Hi-Feed End Mill

Ø.625-1.000"
Chip Surfer Connection
6 mm Insert with 4 indexes
Insert corners: .015" .031" .039" .047" .059" .062".079" R & Hi-Feed
32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper
Backdraft insert option to reduce vibration for long reach applications
.24" Depth of cut

DiPosDuo
1TJ1D - 90° Backdraft & Hi-Feed End Mill

Ø.625-1.500"
Weldon Shank
6 mm Insert with 4 indexes
Insert corners: .015" .031" .039" .047" .059" .062".079" R & Hi-Feed
32-63 Ra finish w/ integrated wiper (WEP)
63-125 Ra finish w/o wiper
Backdraft insert option to reduce vibration for long reach applications
.24" Depth of cut

DiPosDuo
1TJ1D - 90° B-Draft & Hi-Feed

Ø16-25 mm
Chip Surfer Connection
6 mm Insert with 4 indexes
6 mm Depth of cut
Insert corners: 0.4, 0.8, 1.0, 1.2, 1.5, 1.6, 2.0 mm R & Hi-Feed
32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert without wiper
Backdraft insert option to reduce vibration for long reach applications

DiPosDuo
1TJ1D - 90° B-Draft & Hi-Feed End Mill

Ø16-32 mm
Weldon Shank (Metric)
6 mm Insert with 4 indexes
Insert corners: 0.4, 0.8, 1.0, 1.2, 1.5, 1.6, 2.0mm R & Hi-Feed
32-63 Ra finish w/ wiper (WEP)
63-125 Ra finish w/o wiper
Backdraft insert option to reduce vibration for long reach applications
6mm Depth of Cut

DiPosDuo
1TJ1D - 90° B-Draft & Hi-Feed End Mill

Ø16-40 mm
TopOn Connection
6 mm Insert with 4 indexes
Insert corners: 0.4, 0.8, 1.0, 1.2, 1.5, 1.6, 2.0mm R & Hi-Feed
32-63 Ra finish w/ integrated wiper (WEP)
63-125 Ra finish w/o wiper
Backdraft insert option to reduce vibration for long reach applications
6mm Depth of Cut

DiPosDuo
1TJ1D - 90° End Mill for Knee Mills

Ø2.50-3.00"
Bridgeport Connection
6 mm Insert with 4 indexes
.24" Depth of cut
Insert corners: .015" .031" .039" .047" .059" .062".079" R & Hi-Feed
32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper

DiPosDuo
1TJ1D - 90° End Mill for Knee Mills

Ø1.00-2.00"
Cylindrical Shank
6 mm Insert with 4 indexes
Insert corners: .015" .031" .039" .047" .059" .062".079" R & Hi-Feed
32-63 Ra finish w/ integrated wiper (WEP)
63-125 Ra finish w/o wiper
.24" Depth of cut

DiPosDuo
1TV1D - Backdraft End Mill

Ø.625-1.000"
Chip Surfer Connection
6 mm Insert with 4 indexes
Backdraft with single point diameter contact lowers radial forces, ideal for long reach side wall finishing
Insert corners: .015", .031", .047", .062" & .079" R

DiPosDuo
TJ1D - 90° Backdraft & Hi-Feed Face Mill

Ø1.500-3.000"
6 mm Insert with 4 indexes
.24" Depth of Cut
Insert corners: .015" .031" .039" .047" .059" .062".079" R & Hi-Feed
32-63 Ra finish w/ integrated wiper (WEP)
63-125 Ra finish w/o wiper
Backdraft insert option to reduce vibration for long reach applications

DiPosDuo
TJ1D - 90° B-Draft & Hi-Feed Face Mill

Ø32-63 mm
6 mm Insert with 4 indexes
6 mm Depth of Cut
Insert corners: 0.4, 0.8, 1.0, 1.2, 1.5, 1.6, 2.0mm R & Hi-Feed
32-63 Ra finish w/ integrated wiper (WEP).
63-125 Ra finish w/o wiper
Backdraft insert option to reduce vibration for long reach applications
