Home > DiPosDuo > MNHU06_PH - Insert for SS/Hi-Temp/Ti > 6183320 MNHU060320R-PH IN2530

EDP: 6183320

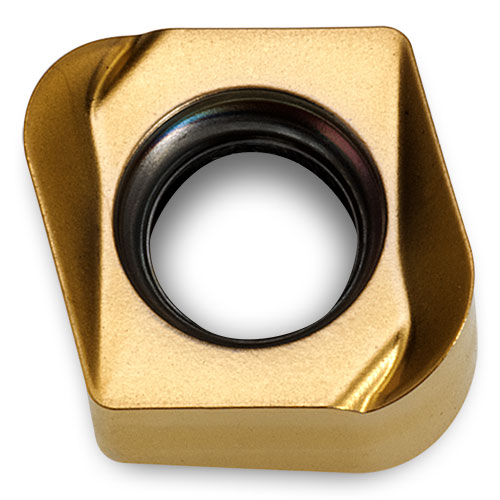

Part: MNHU060320R-PH IN2530
Series: MNHU06_PH - Insert for SS/Hi-Temp/Ti

Application

SS/Hi-Temp/Ti

RE Corner Radius

0.079

LE Cutting Edge Eff. Length

0.200

INSL Insert Length

0.260

W1 Insert Width

0.260

S Thickness

0.165

NOI Number of Indexes

4

IH Insert Hand

Right

Available : 50
International: 2139

Product Series Features:

Keen edge for SS/Hi-Temp/Ti
Pressed rake face geometry promotes efficient chip formation
4 Indexes

Application	SS/Hi-Temp/Ti
RE - Corner Radius	0.079
LE - Cutting Edge Eff. Length	0.200
INSL - Insert Length	0.260
W1 - Insert Width	0.260
S - Thickness	0.165
NOI - Number of Indexes	4
IH - Insert Hand	Right
