EDP: 6235580

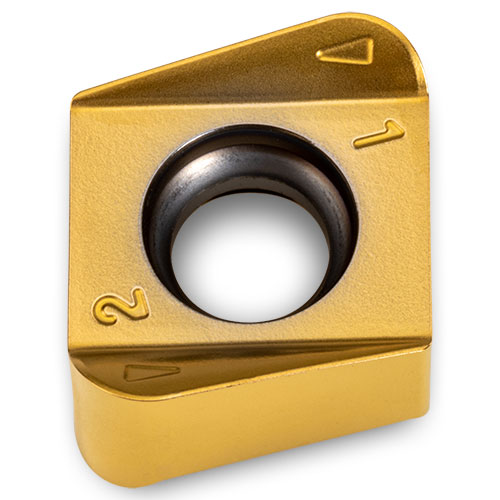

Part: MNHU110624R-M IN2505
Series: MNHU11_M - Multi-Purpose Insert

View STEP

Application

Multi-Purpose

RE Corner Radius

0.093

LE Cutting Edge Eff. Length

0.389

INSL Insert Length

0.421

W1 Insert Width

0.421

S Thickness

0.318

NOI Number of Indexes

4

IH Insert Hand

Right

Available : 70
International: 1136

Product Series Features:

Pressed rake face geometry promotes efficient chip formation
Designed for multiple materials and applications
4 Indexes

Application	Multi-Purpose
RE - Corner Radius	0.093
LE - Cutting Edge Eff. Length	0.389
INSL - Insert Length	0.421
W1 - Insert Width	0.421
S - Thickness	0.318
NOI - Number of Indexes	4
IH - Insert Hand	Right
STEP Light File
STEP Detailed File
