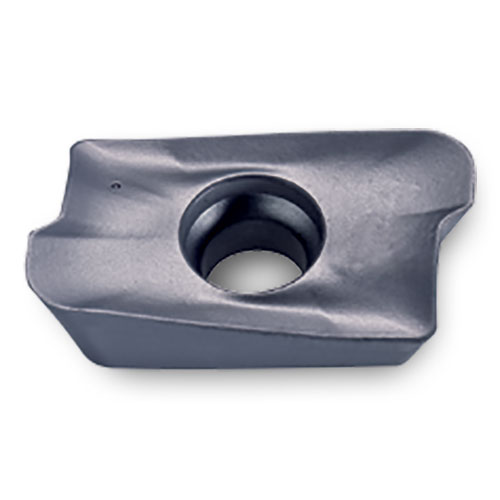

Trade Logo  EDP:  Part: AOMT180524R  Series: AOMT18 - Multi-Purpose Insert

Product Series Features:

  • Pressed rake face geometry promotes efficient chip formation
  • Integrated wiper flat on face for producing surface finishes as good as 32 Ra
  • Diverse corner configurations
  • Designed for multiple materials and applications
  • 2 Indexes

Hi-Pos Plus
12J1E - 90° End Mill

  • Ø1.00 (40 Taper)
  • .66" Depth of Cut (18 mm Insert)
  • 32-63 Ra surface finishes when engaging integrated wiper (WEP)
  • Insert Corner: .015" .031" .062" .093" & .125" R.
  • Insert with 2 Indexes

Hi-Pos Plus
12J1E - 90° End Mill

  • Ø1.00-2.00 (Weldon)
  • .66" Depth of Cut (18 mm Insert)
  • 32-63 Ra surface finishes when engaging integrated wiper (WEP)
  • Insert Corner: .015" .031" .062" .093" & .125" R. Use 12J4E for .187" & .250" R
  • Insert with 2 Indexes

Hi-Pos Plus
12J1E - 90° Modular End Mill

  • Ø1.000-1.250" (T-Adaption)
  • .66" Depth of cut
  • 18 mm Insert with 2 indexes
  • 32-63 Ra surface finishes when engaging integrated wiper (WEP)
  • Insert corners: .015", .031", .062", .093", .125" R

Hi-Pos Plus
22J3E - 90° Rough & Finish End Mill

  • Ø1.500-2.000" (Weldon)
  • All Eff. / RH Helix
  • 18 mm Insert with 2 indexes
  • Produces smooth wall (no steps)
  • 32-63 Ra surface finishes when engaging the wiper (WEP)
  • Insert corners: .015", .031", .062", .093" R

Hi-Pos Plus
22J3E - 90° Rough & Finish End Mill

  • Ø2.000-4.000" (Shell Mill)
  • All Eff. / RH Helix
  • 18 mm Insert with 2 indexes
  • Produces smooth wall (no steps)
  • 32-63 Ra surface finishes when engaging the wiper (WEP)
  • Insert Corner: .015", .031", .062" & .093" R

Hi-Pos Plus
22J3E - 90° Rough & Finish End Mill

  • Ø2.000-2.500" (50 Taper)
  • All Eff. / RH Helix
  • 18 mm Insert with 2 indexes
  • Produces smooth wall (no steps)
  • 32-63 Ra surface finishes when engaging the wiper (WEP)
  • Insert corners: .015", .031", .062", .093" R

Hi-Pos Quad
23J6G - 90° End Mill

  • Ø2.000" (50 Taper)
  • 1/2 Eff. / LH Helix (11-18 mm inserts)
  • Periphery inserts with 4 indexes
  • Face insert corners: .031", .062", .093", .125" R with 2 indexes

Hi-Pos Quad
23J6G - 90° End Mill

  • Ø1.500" (Weldon)
  • 1/2 Eff. / LH Helix (11-18 mm Inserts)
  • Periphery Inserts with 4 Indexes
  • Face Insert Corner: .031", .062", .093" and .125"R with 2 indexes

Hi-Pos Plus
2J1E - 90° Face Mill

  • Ø2.00-6.00"
  • .66" Depth of cut
  • 18 mm Insert with 2 indexes
  • 32-63 Ra surface finishes when engaging the wiper (WEP)
  • Insert corners: .015", .031", .062", .093", .125" R. Use 2J4E for .187" & .250 R

Hi-Pos Plus
4W2A - 90° Cartridge Face Mill

  • Ø6.00-12.00"
  • .66" Depth of cut
  • 18 mm Insert with 2 indexes
  • Cartridge pocket protection (sold separately)
