EDP: 4543113 Part: BT40SRK5X85 Series: BT*SRK (Metric)

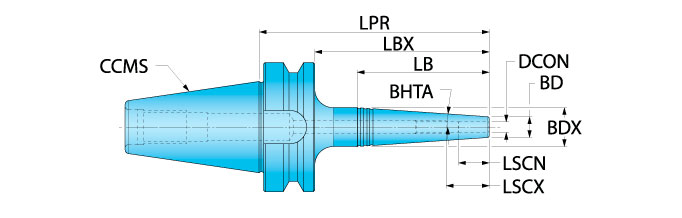

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 0
International: 8
Product Series Features:
- BT MAS-403
- METRIC Thermal Shrink Chuck
- AD Style Coolant (coolant through the center)
- Balanced G2.5@25,000RPM
Notes:
- Note: Preset screw with coolant hole is an optional item that should be ordered separately.
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7000538 | SRM6X10DIN916 | SRM6X10DIN916 | M6X1 RH Socket Set Screw; 10mm OAL; No head; Female hex DIN916 | n/a | n/a | n/a |
