Home > ChipSurfer > 16Y 17Y - 60° Thread Mill Tip > 5873025 17Y21730T8RP60 IN1530

EDP: 5873025

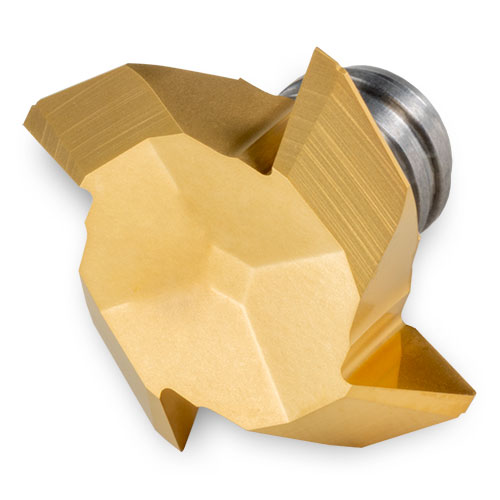

Part: 17Y21730T8RP60 IN1530
Series: 16Y 17Y - 60° Thread Mill Tip

View STEP

DC Cutting Dia.

0.854

TPN Thread Pitch Min.

3.0 mm

TPX Thread Pitch Max.

4.5 mm

TPIN Threads Per Inch Min.

8

TPIX Threads Per Inch Max.

5.5

PNA Profile Included Angle

60

RE Corner Radius

0.008

PDX Profile Distance Ex

0.110

CDX Cutting Depth Max.

4.00 mm

LF Functional Length

2.82 mm

DWN Workpiece Dia. Min.

1.220

ZEFF Eff. Teeth

4

CCMS Connection Code Machine Side

Chip Surfer T08

TQ Torque

130 in lb

DHUB Hub Dia.

12.00 mm

CSP Coolant

No

Available : 82
International: 1424

Product Series Features:

60° Partial Profile
Ø.750" Min.
Chip Surfer Connection
3 & 4 Flute
Ø0.750" Smallest Possible Diameter

Notes:

When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.

DC - Cutting Dia.	0.854
TPN - Thread Pitch Min.	3.0 mm
TPX - Thread Pitch Max.	4.5 mm
TPIN - Threads Per Inch Min.	8
TPIX - Threads Per Inch Max.	5.5
PNA - Profile Included Angle	60
RE - Corner Radius	0.008
PDX - Profile Distance Ex	0.110
CDX - Cutting Depth Max.	4.00 mm
LF - Functional Length	2.82 mm
DWN - Workpiece Dia. Min.	1.220
ZEFF - Eff. Teeth	4
CCMS - Connection Code Machine Side	Chip Surfer T08
TQ - Torque	130 in lb
DHUB - Hub Dia.	12.00 mm
CSP - Coolant	No
DXF File
STEP Light File
STEP Detailed File

Choose a Section

Photo of ChipSurfer

ChipSurfer
C*T

C-Adapter (ISO 26623-1)
Chip Surfer Connection
Neck Relief
Quick Change Holder
AD Style with Ported Coolant delivery
Do not apply lubricant to the threaded connection.
*See Notes below

Photo of ChipSurfer

ChipSurfer
C*T (Metric)

C-Adapter (ISO 26623-1)
Chip Surfer Connection
Neck Relief
Quick Change Holder
AD Style with Ported Coolant delivery
Do not apply lubricant to the threaded connection
*See Notes below

Photo of ChipSurfer

ChipSurfer
DIN69871*T (Metric)

DIN69871 V-Flange
Chip Surfer Connection
AD Style Coolant (coolant through the center)
Balanced G2.5@20,000 RPM
Do not apply lubricant to the threaded connection

Photo of ChipSurfer

ChipSurfer
ER*T - Solid ER, Neck Relief

Solid ER in sizes 11, 16, 20, 25 & 32
Chip Surfer Connection
Neck Relief
Coolant Options

Photo of ChipSurfer

ChipSurfer
HSKA*T

HSK-A (DIN 69893/A)
Chip Surfer Connection
Balanced G2.5@20,000 RPM
AD Style Coolant
Do not apply lubricant to the threaded connection
*See Notes below

Photo of ChipSurfer

ChipSurfer
HSKA*T (Metric)

HSK-A (DIN 69893/A)
Chip Surfer Connection
Balanced G2.5@20,000 RPM
AD Style Coolant
Do not apply lubricant to threaded connection
*See Notes below

Photo of TopOn

TopOn
MOD*T*SK

TopOn to Chip Surfer Connection
Coolant through the center
Do not apply lubricant to the threaded connection
*See Notes below

Photo of ChipSurfer

ChipSurfer
S*T*CA - Carbide Shank, Necked

Cylindrical Shank
Chip Surfer Connection
Neck Relief
Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length

Photo of ChipSurfer

ChipSurfer
S*T*CA - Carbide Shank, Necked

Cylindrical Shank (Metric)
Chip Surfer Connection
Neck Relief
Coolant options
Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length

Photo of ChipSurfer

ChipSurfer
S*T*CA - Carbide Shank, No Neck

Cylindrical Shank
Chip Surfer Connection
No Neck Relief
Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder

Photo of ChipSurfer

ChipSurfer
S*T*CA - Carbide Shank, No Neck

Cylindrical Shank (Metric)
Chip Surfer Connection
No Neck Relief
Coolant options
Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder

Photo of ChipSurfer

ChipSurfer
S*T*CK - Carbide Shank, Cone Neck

Cylindrical Shank
Chip Surfer Connection
Conical Neck

Photo of ChipSurfer

ChipSurfer
S*T*CK - Carbide Shank, Cone Neck

Cylindrical Shank (Metric)
Chip Surfer Connection
Conical Neck

Photo of ChipSurfer

ChipSurfer
S*T*HA - Heavy Metal Shank, Necked

Cylindrical Shank (Metric)
Chip Surfer Connection
Neck Relief
Coolant options
Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length

Photo of ChipSurfer

ChipSurfer
S*T*HA - Heavy Metal Shank, Necked

Cylindrical Shank (Inch)
Chip Surfer Connection
Neck Relief
Coolant options
Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length

Photo of ChipSurfer

ChipSurfer
S*T*HA - Heavy Metal Shank, No Neck

Cylindrical Shank
Chip Surfer Connection
No Neck Relief
Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder

Photo of ChipSurfer

ChipSurfer
S*T*HK - Heavy Metal, Cone Neck

Cylindrical Shank (Inch)
Chip Surfer Connection
Conical Neck
Coolant options

Photo of ChipSurfer

ChipSurfer
S*T*HK - Heavy Metal, Cone Neck

Cylindrical Shank (Metric)
Chip Surfer Connection
Conical Neck
Coolant options

Photo of ChipSurfer

ChipSurfer
S*T*NA - Steel Shank, Thrust Cool

Cylindrical Shank (Metric)
Chip Surfer Connection
Neck Relief
Thrust Cool System equipped with brazed Coolant Collar and Coolant Grooves for precise delivery down the Neck OD to the tip's cutting edges
Thrust Cool Shanks are ideal for use with carbide tips that do not have coolant holes

Photo of ChipSurfer

ChipSurfer
S*T*NA - Steel Shank, Thrust Cool

Cylindrical Shank
Chip Surfer Connection
Neck Relief
Thrust Cool System equipped with brazed Coolant Collar and Coolant Grooves for precise delivery down the Neck OD to the tip's cutting edges
Thrust Cool Shanks are ideal for use with carbide tips that do not have coolant holes

Photo of ChipSurfer

ChipSurfer
S*T*SA - Steel Shank, Chamfered Neck

Cylindrical Shank (Metric)
Chip Surfer Connection
30° Chamfer Neck
Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder

Photo of ChipSurfer

ChipSurfer
S*T*SA - Steel Shank, Necked

Cylindrical Shank
Chip Surfer Connection
Neck Relief
Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length

Photo of ChipSurfer

ChipSurfer
S*T*SA - Steel Shank, Necked

Cylindrical Shank (Metric)
Chip Surfer Connection
Neck Relief
Coolant options
Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length

Photo of ChipSurfer

ChipSurfer
S*T*SA - Steel Shank, No Neck

Cylindrical Shank (Metric)
Chip Surfer Connection
No Neck Relief
Coolant options
Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder

Photo of ChipSurfer

ChipSurfer
S*T*SA - Steel Shank, No Neck

Cylindrical Shank
Chip Surfer Connection
No Neck Relief
Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder

Photo of ChipSurfer

ChipSurfer
S*T*SA - Steel Weldon, Chamfered Neck

Weldon Shank (Metric)
Chip Surfer Connection
Neck Relief is either a Radius or Chamfer
Chamfer: 30°
Radius: 5.0 mm R

Photo of ChipSurfer

ChipSurfer
S*T*SK - Steel Shank, Chamfered Neck

Cylindrical Shank (Inch)
Chip Surfer Connection
30° Chamfer Neck
Due to tolerance, shank diameter will be slightly larger than tip diameter. .010" per side neck modification required for clearance when milling 90° shoulder

Photo of ChipSurfer

ChipSurfer
S*T*SK - Steel Shank, Cone Neck

Cylindrical Shank
Chip Surfer Connection
Conical Neck

Photo of ChipSurfer

ChipSurfer
S*T*SK - Steel Shank, Cone Neck

Cylindrical Shank (Metric)
Chip Surfer Connection
Conical Neck

Photo of ChipSurfer

ChipSurfer
T_T_SA - Extension

Chip Surfer to Chip Surfer
Neck Relief

Photo of ChipSurfer

ChipSurfer
T_T_SK - Reducer

Chip Surfer to Chip Surfer
Neck Relief

Photo of ChipSurfer

ChipSurfer
W*T*SA - Steel Weldon, Chamfered Neck

Weldon Shank
Chip Surfer Connection
Neck Relief is either a Radius or Chamfer
Chamfer: 30°
Radius: 0.197 - 0.236" R

	EDP	Part Number	ISO Number	Description	Additional Info	DXF File	STEP Light File	STEP Detailed File
	7080891	WS-0036	WS-0036	Clamping/Locking Key for use with T-Slotting style Chip Surfer heads	Optional Accessory Item; Sold Separately	n/a	n/a	n/a

Operating Guidelines

Chip Surfer Index Instructions
