EDP: 2941883 Part: KIT DFH-IPB50-50-69K Series: K01 TRE50-IP69K
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Available : 7
International: 9
Product Series Features:

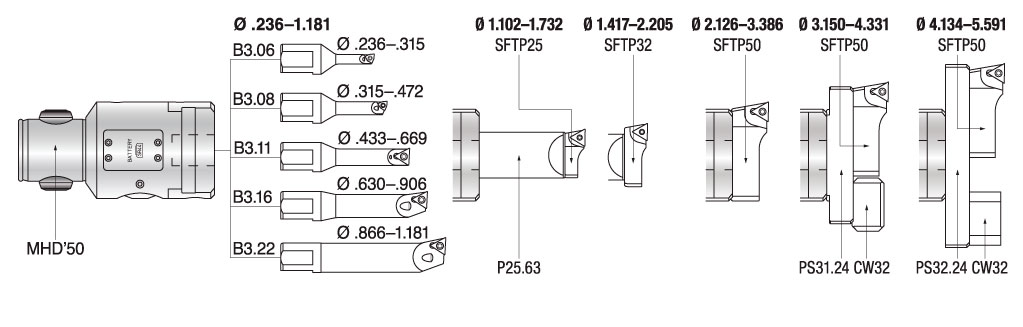

- Dia. Range: .236" - 5.591"
- (6.0mm-142.0mm)

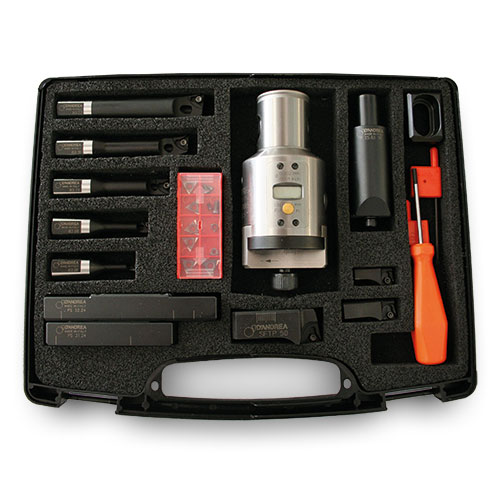

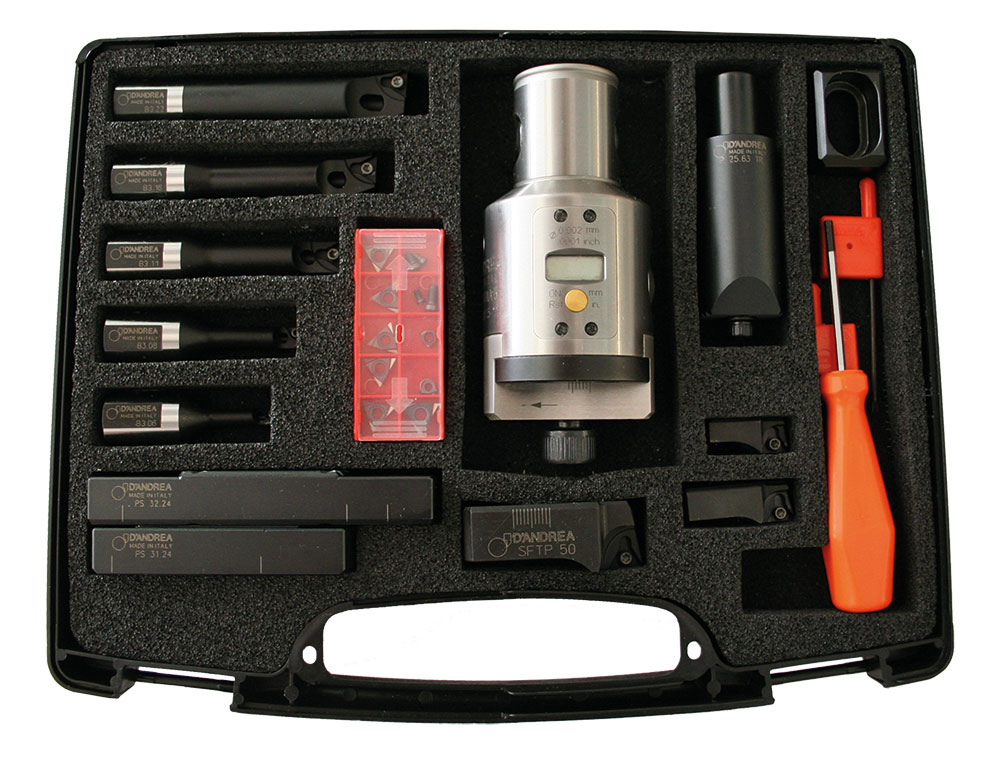

- Contents:
- (1) TRE50-IP69K
- (1) B3.06, (1) B3.08, (1) B3.11, (1) B3.16, (1) B3.22
- (1) P25.63
- (1) PS31.24, (1) PS32.24
- (1) CW32
- (1) SFTP25, (1) SFTP32, (1) SFTP50
- (1) BM10
- (5) TPGX 090202L, (1) TPGX 110302L
- (2) WCGT 020102L
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 2941753 | B3.06 | IPB-3X-A6-8-W02 | NA | NA | n/a | n/a | n/a | |
| 3240052 | 572010508001 | B3.08 | NA | NA | n/a | |||
| 2941759 | B3.11 | IPB-3X-A11-13-T09 | NA | NA | n/a | |||
| 2941762 | B3.16 | IPB-3X-A16-18-T09 | NA | NA | n/a | |||
| 3240059 | 572010522001 | B3.22 | NA | NA | n/a | |||
| 3240032 | 470500525001 | SFTP25 | Finish Cartridge | Insert Series: TPGX 0902.. | n/a | |||
| 2941742 | SFTP32 | FH-STGP-09-32-IPB | Finish Cartridge | Insert Series: TPGX 0902... | n/a | |||
| NA | TPGX730.5L | NA | NA | n/a | n/a | n/a | ||
| NA | TPGX220.5L | NA | NA | n/a | n/a | n/a | ||
| 2925576 | 455200500501 | TRE50-69K | Digital Boring Head | MHD 50 | n/a | n/a | n/a |
