Home > Top-On > CAT50*ODP > 2920459 CAT50ODPM20X9.250

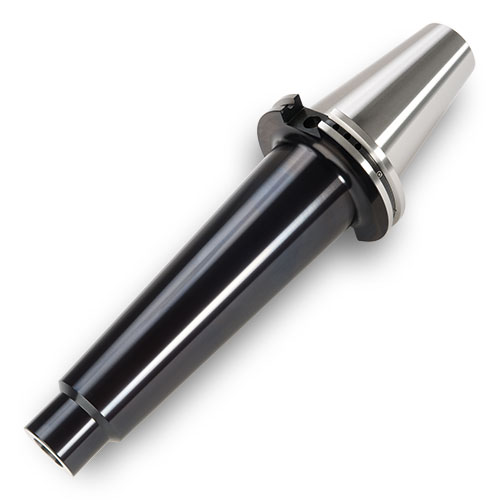

Trade Logo  EDP: 2920459  Part: CAT50ODPM20X9.250  Series: CAT50*ODP

View STEP

Available : 0

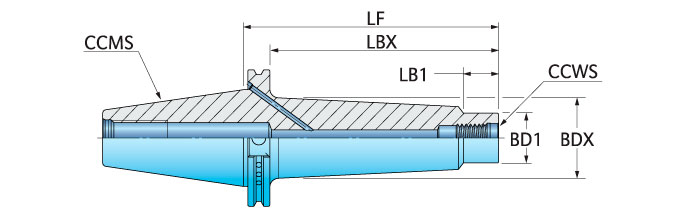

Product Series Features:

  • CAT50 V-Flange
  • TopOn Threaded Depo Adaption
  • Balanced G6.3@12,000 RPM
  • ADB Convertible Coolant (Through the center or flange)
  • Note: Remove plug screw from flange to activate teh coolant through the flange delivery option
Notes:
  • *Images are a representation of the product series as a whole and therefore may not be an exact representation of a specific item

Form-Master Shear
15B1B - Button End Mill

  • Ø1.000-1.500”
  • TopOn Connection
  • 12 mm IC Insert with anti-rotation
  • Max. depth of cut: 5 mm
  • Reliable performance, strength & economy!

GoldSFeed
15G1D - Hi-Feed End Mill

  • Ø.625-1.500"
  • TopOn Connection
  • 6 mm insert with 4 indexes
  • .040" Max. depth of cut
  • Three different insert edge preparations provide application flexibility
  • Outboard wiper produces high-quality shoulder surface finish

GoldSFeed
15G1F- Hi-Feed End Mill

  • Ø1.000-1.500"
  • TopOn Connection
  • 9 mm inserts with 4 indexes
  • .060" Max. depth of cut
  • Superior high-feed semi finish laid by both axial and radial wipers

Form-Master Shear
15T1G - T-Slotter

  • Ø2.500-3.000"
  • TopOn Connection
  • 10 mm IC button insert with 8 indexes
  • 10 mm (.394") Cutting width
  • Insert anti-rotation
  • Reliable performance, strength & economy!

Form-Master Shear
15T8E - T-Slotter

  • Ø2.500-3.000"
  • TopOn Connection
  • 8 mm IC button insert
  • 8 mm (.315") Cutting width
  • Reliable performance, strength & economy!

Pro-Ball
1BW7 - Roughing Ball Nose End Mill

  • Ø.500–2.000”
  • TopOn Connection
  • Insert with 2 indexes
  • 2 Effective
  • Max. depth of cut: Full Radius
  • Insert corners: .250", .375", .500", .625", .750" & 1.000" R

Power-Feed 13 Plus
1DG1P - Hi-Feed End Mill

  • Ø1.250-1.500”
  • TopOn Connection
  • 13 mm IC Insert with 6 indexes
  • 2 mm (.078") Max. depth of cut
  • Three different insert edge preparations provide application flexibility.
  • Excellent high feed performance & economy!

DiPosQuad
1DJ1R - 90° End Mill

  • Ø1.00-1.50"
  • TopOn Connection
  • 10 mm Insert with 8 indexes
  • .27" Depth of cut
  • 15-32 Ra surface finishes when engaging the wiper (WEP)
  • Great Price-per-Edge economy!
  • Insert corner: .031" R

DiPosPenta
1DP1P - Hi-Feed End Mill

  • Ø1.500"
  • TopOn Connection
  • .11" Depth of cut
  • 10 mm Insert with 10 indexes
  • Same insert fits Hi-Feed & 65° MIlls
  • Positive rake and reinforced edge offer low cutting forces and smooth machining in deep cavities
  • High ramping capability
  • Great price-per-edge economy!

MaxSFeed
1EJ5B - 90° End Mill

  • Ø.750-1.500"
  • TopOn Connection
  • 8 mm insert with 4 indexes
  • .317" Max depth of cut
  • Insert corners: .015", .031", .062"R

DiPosFeed
1TG1F - Hi-Feed End Mill

  • Ø.625-1.500”
  • TopOn Connection
  • 6 mm IC Insert with 4 indexes
  • .040" Max. depth of cut
  • Three different insert edge preparations provide application flexibility
  • Excellent hi-feed performance & economy!

DiPosFeed
1TG1G - Hi-Feed End Mill

  • Ø1.00-1.500”
  • TopOn Connection
  • 9 mm IC Insert with 4 indexes
  • 1.5 mm (.059") Max. depth of cut
  • Three different insert edge preparations provide application flexibility
  • Excellent hi-feed performance & economy!

DiPosFeed
1TG1J - Hi-Feed End Mill

  • Ø1.250 - 1.500”
  • TopOn Connection
  • 11 mm IC Insert with 4 indexes
  • 2 mm (.078") Max. depth of cut
  • Two different insert edge preparations provide application flexibility
  • Excellent high-feed performance & economy!


1TG1V - Hi-Feed End Mill

  • Ø.625-1.500”
  • TopOn Connection
  • 06 mm IC Insert with 4 indexes
  • 1.0 mm (.040") Max. depth of cut
  • Double-Sided 4-corner Insert
  • Higher Ramp Down Angle with Secure 'V' Clamping for Improved Productivity

DiPosDuo
1TJ1F - 90° & Hi-Feed End Mill

  • Ø1.000-1.500"
  • TopOn Connection
  • 9 mm Insert with 4 indexes
  • 90°: .32" DOC, Hi-Feed: .059" DOC
  • Insert corners: .015" .031" .062" R & Hi-Feed
  • 32-63 Ra finishes when using insert with integrated wiper (WEP).
  • 63-125 Ra finishes when using insert with no integrated wiper

DiPosDuo
1TJ1G - 90° & Hi-Feed End Mill

  • Ø1.000-1.500"
  • TopOn Connection
  • 11 mm Insert with 4 indexes
  • 90°: .41" DOC, Hi-Feed: .078" DOC
  • Insert corners: .031" .062" .094" R & Hi-Feed
  • 32-63 Ra finishes when using insert with integrated wiper (WEP)
  • 63-125 Ra finishes when using insert with no integrated wiper

DiPosDuo
1TJ1J - 90° & Hi-Feed End Mill

  • Ø1.250-1.500"
  • TopOn Connection
  • 14 mm Insert with 4 indexes
  • 90°: .54" DOC, Hi-Feed: .118" DOC
  • Insert corners: .031" R & Hi-Feed
  • 32-63 Ra finishes when using insert with integrated wiper (WEP)
  • 63-125 Ra finishes when using insert with no integrated wiper
