EDP: 4558796 - Part Number: S012T05SA150 - Series: S*T*SK

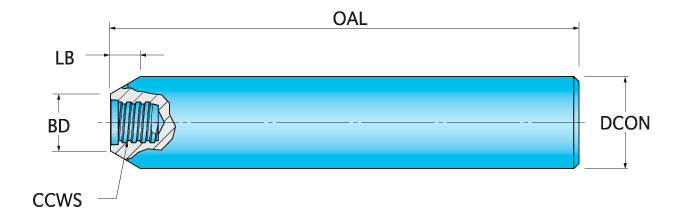

DCON - Shank Dia.	12.00 mm
CCWS - Connection Code Workpiece Side	Chip Surfer T05
LB - Body Length	3.81 mm
OAL - Overall Length	150.00 mm
BD - Body Dia.	7.60 mm
CSP - Coolant	No
BMC - Body Material Code	Steel
RPMX - RPM Max.	18270
DXF File
STEP Light File
STEP Detailed File

ChipSurfer
17N - Extended Neck Front & Back Chamfer Tip

Ø7.7mm
Chip Surfer Connection
4 Flute
45° Front & Back Chamfer

ChipSurfer
17T - Extended Neck T-Slitter

Ø7.7 mm
Chip Surfer Connection
4 Flute Slitter
0.70-2.00 mm width of slot range
Positive radial & neutral axial rake geometry

ChipSurfer
18F - 90° Face Mill Tip

Ø12-25 mm
Chip Surfer Connection
6 Flute
.3xD Flute Length
Non-Center Cutting
Corner: 0.2 & 0.4 mm R
20-32 Ra surface finishes
Ideal for facing and shouldering in narrow confined areas.
Well suited for milling flats on bar stock with Mill-Turn machines.

ChipSurfer
18R - Full Radius T-Slitter

Ø.500"-.900"
Chip Surfer Connection
.062"-.187" Slot Width
6 Flute, Full Eff
Positive radial and neutral axial rake geometry

ChipSurfer
18T - T-Slot Preform Blanks

Ø.551-1.125"
Chip Surfer Connection
6 Flute
.075 - .405" Width of slot range
Pressed blanks with no cutting geometry. Will not cut metal unless cutting geometry is produced on diameter and width.

ChipSurfer
18T - T-Slot Tip

Ø.500-1.000"
Chip Surfer Connection
6 Flute stagger tooth
.056-.375" Width of slot range
Positive axial & positive radial rake geometry

ChipSurfer
18T - T-Slot Tip

Ø13.5-27.7 mm
Chip Surfer Connection
6 Flute stagger tooth
2.0-10.0 mm width of slot range
Positive axial & positive radial rake geometry

ChipSurfer
18V - Dovetail Tip

Ø.500-1.090"
Chip Surfer Connection
6 Flute
Back-Angle: 5°, 10°, 15°, 20°, 27.5°, 30°, 45° & 60°
Included Angle: 10°, 20°, 30°, 40°, 55°, 60°, 90° & 120°

ChipSurfer
45B_T_P - Ball Nose for Aluminum

Ø.312-1.000"
Chip Surfer Connection
2 Flute, 45° Helix
.7xD Flute Length
Sharp & uncoated for nonferrous materials

ChipSurfer
45B_T_P - Ball Nose for Aluminum

Ø8-25 mm
Chip Surfer Connection
2 Flute, 45° Helix
.7xD Flute Length
Sharp and uncoated for nonferrous materials

ChipSurfer
45B_T_RA - Positive Ball Nose

Ø.312-.625"
Chip Surfer Connection
2 Flute, 0° Helix
1.0xD Flute Length
Positive radial rake
Ideal for soft materials and finishing in stable conditions
Pressed flute geometry offers economical benefit

ChipSurfer
45B_T_RA - Positive Ball Nose

Ø8-16 mm
Chip Surfer Connection
2 Flute, 0° Helix
1.0xD Flute Length
Positive radial rake
Ideal for soft materials and finishing in stable conditions
Pressed flute geometry offers economical benefit

ChipSurfer
45B_T_RB - Helical Ball Nose

Ø8-16 mm
Chip Surfer Connection
2 Flute, 30° Helix
.7xD Flute Length
2 Center-cutting flutes

ChipSurfer
45B_T_RB - Helical Ball Nose

Ø.312-.750"
Chip Surfer Connection
2 Flute, 30° Helix
.7xD Flute Length
2 Center-cutting flutes

ChipSurfer
45B_T_RW - Neutral Ball Nose

Ø.312-.625"
Chip Surfer Connection
2 Flute, 0° Helix
1.0xD Flute Length
Neutral radial rake for edge strength & durability
Ideal for hard steel and finishing irregular stock conditions
Pressed flute geometry offers economical benefit

ChipSurfer
45B_T_RW - Neutral Ball Nose

Ø8-16 mm
Chip Surfer Connection
2 Flute, 0° Helix
1.0xD Flute Length
Neutral radial rake for edge strength & durability
Ideal for hard steel and finishing irregular stock conditions
Pressed flute geometry offers economical benefit

ChipSurfer
45D - 90° Drill-Mill Tip

Ø7.8-16 mm
Chip Surfer Connection
2 Flute, 10° Helix
1.0xD Flute Length
Center-cutting
Corner: 0.2, 0.4, 0.3, 0.8, 1.0 & 2.0 mm R
Ideal for milling blind key-slots
Economical solution for 90° shoulders

ChipSurfer
45D - 90° Drill-Mill Tip

Ø.312-.625"
Chip Surfer Connection
2 Flute, 10° Helix
1.0xD Flute Length
Center-cutting
Corner: .015" R
Ideal for milling blind key-slots
Economical solution for 90° shoulders

ChipSurfer
45D-P - 90° End Mill for Aluminum

Ø8-12 mm
Chip Surfer Connection
2 Flute, 45° Helix
.7xD Flute Length
Center-cutting
Corner: 0.5 & 1.0 mm R
Sharp and uncoated for nonferrous materials

ChipSurfer
45N_RA - Front-Back Chamfer & C'Sink

Ø1.20 mm Min.
Chip Surfer Connection
45° Cutting Edge Angle (front & back)
90° Included Angle
2 flute

ChipSurfer
45NMP_RA - Chamfer & Spotting Tip

Ø8-20 mm
Chip Surfer Connection
Cutting Edge Angle options: 18° 30° 40° 45° 50° & 60°
Included Angle options: 144° 120° 100° 90° 80° & 60°
80° Incl. for countersink according to ANSI B18.3 Flat Head Cap Screw (up to 82°)
2 Flute

ChipSurfer
45Q - Engraving Tip

90° Included Angle
Chip Surfer Connection
1 Flute, R .010" Point

ChipSurfer
45Q_RA - Engraving Tip

Ø8 mm
Chip Surfer Connection
Cutting Edge Angle: 22.5° 30° & 45°
Included Angle : 45° 60° & 90°
1 Flute, R 0.2 mm Point

ChipSurfer
45R - Corner Round

Ø4.7 mm Min.
Chip Surfer Connection
Corner: 1.0, 1.6, 2.0 ,2.5, 3.0, 4.0, 5.0 & 6.0 mm R
2 Flute

ChipSurfer
45V - Flat Bottom Plunge & Spotface

Ø.312-.625"
Chip Surfer Connection
2 Flute, Center-Cutting
Corner: .031" R
Ideal for long reach Z-Axis plunge roughing, spotfacing, shallow counterboring & creating flat bottom in holes

ChipSurfer
45V - Flat Bottom Plunge/Spot

Ø8-16 mm
Chip Surfer Connection
2 Flute, Center-Cutting
Corner: 0.4 & 0.8 mm R
Ideal for long reach Z-Axis plunge roughing, spotfacing, shallow counterboring & creating flat bottom in holes

ChipSurfer
45V-P - Flat Bottom Plunge/Spot Aluminum

Ø8-16 mm
Chip Surfer Connection
2 Flute, Center-Cutting, Sharp & Polished
Corner: 0.4 mm R
Ideal for long reach Z-Axis plunge roughing, spotfacing, shallow counterboring & creating flat bottom in holes

ChipSurfer
45V-P - Flat Bottom Plunge/Spot for Aluminum

Ø.312-.625"
Chip Surfer Connection
2 Flute, Center-Cutting, Sharp & Polished
Corner: .015" R
Ideal for long reach Z-Axis plunge roughing, spotfacing, shallow counterboring & creating flat bottom in holes

ChipSurfer
45X - Spherical Ball Nose

Ø10-20 mm
Chip Surfer Connection
2 Flute, 0° Helix
.7xD Flute Length
120° Radius Wrap

ChipSurfer
45X - Spherical Ball Nose

Ø.375-1.00"
Chip Surfer Connection
2 Flute, 0° Helix
.7xD Flute Length
120° Radius Wrap

ChipSurfer
45Z - Center Drill Tip

Ø.12-.25"
Chip Surfer Connection
ANSI B94 #4, #5, #6 & #7

ChipSurfer
45Z - Center Drill Tip

Ø3.2-6.4 mm
Chip Surfer Connection
DIN 332

ChipSurfer
45Z_RA - NC Spot Drill

Ø8-16 mm
Chip Surfer Connection
90° & 145° Incl. Angle
Thin web thickness at the point prevents "tool walking"
Accurate hole locating without use of guide bushing

ChipSurfer
45Z_RA - NC Spot Drill

Ø.312-.625
Chip Surfer Connection
145° Incl. Angle
Thin web thickness at the point prevents "tool walking"
Accurate hole locating without use of guide bushing

ChipSurfer
46B_T_RB - Helical Ball Nose

Ø8-20 mm
Chip Surfer Connection
3 Flute, 30° Helix
.7xD Flute Length
1 Center-cutting flute

ChipSurfer
46B-P - Ball Nose for Aluminum

Ø.250"
Chip Surfer Connection
3 Flute, 38° Helix
.7xD Flute Length
Sharp and uncoated for nonferrous materials

ChipSurfer
46B-P - Ball Nose for Aluminum

Ø.312-.750"
Chip Surfer Connection
3 Flute, 38° Helix
.7xD Flute Length
Sharp and uncoated for nonferrous materials

ChipSurfer
46D & 46J - 90° End Mill

Ø7.7-19.7 mm
Chip Surfer Connection
3 Flute, 38° & 45° Helix
.7xD Flute Length
Center-cutting
Corner: Sharp, 0.2, 0.3 & 0.4 R

ChipSurfer
46D & 46J - 90° End Mill Tip

Ø.312-.500"
Chip Surfer Connection
3 Flute, 45° Helix
.7xD Flute Length
Center-cutting
Corner: Sharp .015" .031" & .062 R

ChipSurfer
46D_RB - Lens Form Finisher (Metric)

Ø8.0-20.0 mm (T-Adaption)
3 Flute, 30° helix, center-cutting, with coolant
0.02 mm profile tolerance
Precise lens-shape face geometry for finishing decks using 3-Axis Machine
Improved surface finish with 2x productivity when compared to a ballnose

ChipSurfer
46D_RN - 90° End Mill for Aluminum

Ø8-20 mm
Chip Surfer Connection
3 Flute, 45° Helix
.7xD Flute Length
Center-cutting
Serrated edge
Corner: 0.2mm R
Sharp and uncoated for nonferrous materials

ChipSurfer
46D_RN - 90° End Mill Tip for Aluminum

Ø.312-.750"
Chip Surfer Connection
3 Flute, 45° Helix
.7xD Flute Length
Center-cutting
Serrated edge
Corner: .008" R
Sharp and uncoated for nonferrous materials

ChipSurfer
46D-P - 90° End Mill for Aluminum

Ø8-20 mm
Chip Surfer Connection
3 Flute, 45° Helix
.7xD Flute Length
Center-cutting
Corners: SC, 0.5, 1.0, 2.0, 3.0, 4.0 R
Sharp and uncoated for nonferrous materials

ChipSurfer
46D-P - 90° End Mill Tip for Aluminum

Ø.312-1.000"
Chip Surfer Connection
3 Flute, 45° Helix
.7xD Flute Length
Center-cutting
Corners: SC, .020", .031", .062", .094", .125" R
Sharp and uncoated for nonferrous materials

ChipSurfer
46N_RA - Front-Back Chamfer & C'Sink

Ø11.6 mm
Chip Surfer Connection
45° Cutting Edge Angle (front & back)
90° Included Angle
3 flute

ChipSurfer
46Q - Fine Engraving Tip

60° Included Angle
Chip Surfer Connection
3 Flute, Sharp Point

ChipSurfer
46W_0 - Taper Form Finisher

Ø8.0-16.0 mm
Chip Surfer Connection
3 Flute, 30° helix, 0.02 mm profile tolerance
Non-center cutting ball tip
1.5, 2.0, 3.0 & 4.0 R nose
Ideal for finishing blisks, impellers & turbine rotors

ChipSurfer
46W_1 - Taper Form Finisher for Aluminum

Ø8.0-16.0 mm
Chip Surfer Connection
3 Flute, 30° helix, 0.02 mm profile tolerance
Non-center cutting ball tip
1.5, 2.0, 3.0 & 4.0 R nose
Sharp & uncoated for nonferrous materials
Ideal for finishing blisks, impellers & turbine rotors

ChipSurfer
47_RN & 48_RN - 90° Rough End Mill

Ø8-25 mm
Chip Surfer Connection
4, 5, & 6 Flute, 45° Helix
.7xD Flute Length
4 Flute Center-cutting
5 & 6 Flute Non-Center-Cutting
Serrated edges aid with chip evacuation and accelerated feed rates
Corner: chamfer options

ChipSurfer
47_RN & 48_RN - 90° Rough End Mill Tip

Ø.312-1.000"
Chip Surfer Connection
4, 5, & 6 Flute, 45° Helix
.7xD Flute Length
4 Flute Center-cutting
5 & 6 Flute Non-Center-Cutting
Serrated edges aids with chip evacuation and accelerated feed rates
Corner: chamfer & radius options

ChipSurfer
47_RQ - 90° Variable Pitch End Mill

Ø8-32 mm
Chip Surfer Connection
4 Flute, 38° Helix
.7xD Flute Length
Center-cutting
Unequal spacing between flutes to diffuse vibration
Corner: Sharp, Chamfer & Radius options

ChipSurfer
47_RQ - 90° Variable Pitch End Mill Tip

Ø.312-1.000"
Chip Surfer Connection
4 & 5 Flute, 38° Helix
.7xD Flute Length
Center-cutting
Unequal spacing between flutes to diffuse vibration
Corner: Sharp, Chamfer & Radius options

ChipSurfer
47_RU - 90° Rough-Fin End Mill

Ø8-25 mm
Chip Surfer Connection
4 Flute, 45° Helix
.7xD Flute Length
Center-cutting
2 serrated edges & 2 smooth edges to diffuse vibration
Corner: chamfers

ChipSurfer
47_RU - 90° Rough-Fin End Mill Tip

Ø.312-1.000"
Chip Surfer Connection
4 Flute, 45° Helix
.7xD Flute Length
Center-cutting
2 serrated edges & 2 smooth edges to diffuse vibration
.031" & .062" R & Chamfer

ChipSurfer
47A_T_RA - Hi-Feed, Positive

Ø8-20 mm
Chip Surfer Connection
4 Flute, positive geometry
Ideal for hard steel, SS & high-temp alloys

ChipSurfer
47B_T_RB - Helical Ball Nose

Ø8-25 mm
Chip Surfer Connection
4 Flute, 30° Helix
.7xD Flute Length
2 Center-cutting flutes

ChipSurfer
47B_T_RB - Helical Ball Nose

Ø.312-1.000"
Chip Surfer Connection
4 Flute, 30° Helix
.7xD Flute Length
2 Center-cutting flutes

ChipSurfer
47B_T_RB - Helical Ball Nose (1.3xD Flute)

Ø.312-1.000"
Chip Surfer Connection
4 Flute, 30° Helix
1.3xD Flute Length
2 Center-cutting flutes

ChipSurfer
47B_T_RQ - Variable Pitch Helical Ball Nose

Ø8-20 mm
Chip Surfer Connection
4 Flute, 45° Helix
.7xD Flute Length
4 Center-cutting flutes
Ideal for hard steel
Well suited for finishing on 5 axis machines

ChipSurfer
47B_T_RQ - Variable Pitch Helical Ball Nose

Ø.312-.750"
Chip Surfer Connection
4 Flute, 45° Helix
.7xD Flute Length
4 Center-cutting flutes
Ideal for hard steel
Well suited for finishing on 5 axis machines

ChipSurfer
47B_TQ - Helical Ball Nose

Ø5-6 mm
Chip Surfer Connection
4 Flute, 38° Helix
2 Center-cutting flutes

ChipSurfer
47B_TQ - Helical Ball Nose

Ø.187-.250"
Chip Surfer Connection
4 Flute, 38° Helix
2 Center-cutting flutes

ChipSurfer
47C 48C - 90° End Mill (1.5xD Flute)

Ø8-25 mm
Chip Surfer Connection
4, 5 & 6 Flute
4 Flute Center Cutting
5 & 6 Flute Non-Center-Cutting
1.5xD Flute Length
Serrated edges aids with chip evacuation and accelerated feed rates
Chamfered Corners

ChipSurfer
47C 48C - 90° Roughing End Mill (1.5xD Flute)

Ø.312-1.000"
Chip Surfer Connection
4, 5 & 6 Flute
4 Flute Center Cutting
5 & 6 Flute Non-Center-Cutting
1.5xD Flute Length
Serrated edges aids with chip evacuation and accelerated feed rates
Chamfered Corners

ChipSurfer
47C -Solid Carbide Serrated Roughing Tip

Ø.312-.750"
Chip Surfer Connection
4, 5, & 6 Flute, 45° Helix
4 Flute Center-cutting
5 & 6 Flute Non-Center-Cutting
Serrated edges aids with chip evacuation and accelerated feed rates
Corner: chamfer & radius options

ChipSurfer
47C_RQ1 - 90° Variable Pitch EM for Hi-Temps

Ø8-25 mm
Chip Surfer Connection
5 Flute, 35°-41° Helix
.7xD Flute Length
Unequal spacing between flutes to diffuse vibration
Corner: Chamfer options
Ideal for Inconel & Hi-Temp Alloys

ChipSurfer
47D & 47J - 90° End Mill Tip

Ø8-20 mm
Chip Surfer Connection
4 Flute, 30° & 45° Helix
.7xD Flute Length
Center-cutting
Corners: sharp, 0.5, 1.0, 1.5, 2.0, 3.0 & 4.0 R

ChipSurfer
47D & 47J - 90° End Mill Tip

Ø.312-.750"
Chip Surfer Connection
4 Flute, 30° & 45° Helix
.7xD Flute Length
Center-cutting
Corners: sharp, .015", .031", .062" R

ChipSurfer
47D_RB - Lens Form Finisher

Ø.312-.500 (T-Adaption)
4 Flute, 30° helix, center-cutting
.00078 profile tolerance
Precise lens-shape face geometry for finishing decks using 3-Axis Machine
Improved surface finish with 2x productivity when compared to a ballnose

ChipSurfer
47D_RB - Lens Form Finisher (Metric)

Ø8.0-16.0 mm (T-Adaption)
4 Flute, 30° helix, center-cutting
0.02 mm profile tolerance
Precise lens-shape face geometry for finishing decks using 3-Axis Machine
Improved surface finish with 2x productivity when compared to a ballnose

ChipSurfer
47D_RQ - 90° Variable Pitch End Mill (1.5xD Flute)

Ø8-25 mm
Chip Surfer Connection
4 Flute, 1.5xD Flute Length
Variable Pitch
Center Cutting
Corner: 0.5 R

ChipSurfer
47D_RQ - 90° Variable Pitch End Mill (1.5xD Flute)

Ø.312-1.000"
Chip Surfer Connection
4 Flute, 1.5xD Flute Length
Variable Pitch
Center Cutting
Corner: sharp, .015" & .031"R

ChipSurfer
47J - 90° Small Dia. End Mill

Ø5-6 mm
Chip Surfer Connection
4 Flute, 45° Helix
Center-cutting
Sharp corner

ChipSurfer
47J & 45J - 90° Small Dia. End Mill Tip

Ø.062-.250"
Chip Surfer Connection
2 or 4 Flutes, 38° Helix
Center-cutting
Sharp corner

ChipSurfer
47N & 48N - Chamfer & Countersink Tip

Ø1.95 mm Min.
Chip Surfer Connection
4 & 6 Flute
Cutting Edge Angle options: 30°, 45°, 49° & 60°
Included Angle options: 120°, 90°, 82° & 60°
Non-center cutting

ChipSurfer
47R - Corner Round Tip

Ø5.1 mm Min.
Chip Surfer Connection
Corners: 1.0, 1.6, 2.0, 2.5, & 3.0 mm R
4 Flute

ChipSurfer
47W - Taper Form Finisher

Ø8.0-16.0 mm
Chip Surfer Connection
4 Flute, 30° helix, 0.02 mm profile tolerance
Center cutting ball tip
1.5, 2.0, 3.0 & 4.0 R nose
Ideal for finishing blisks, impellers & turbine rotors

ChipSurfer
47W - Taper Form Finisher

Ø.312-.500
Chip Surfer Connection
4 Flute, 30° helix, 0.02 mm profile tolerance
Center cutting ball tip
.060" .123" & .157" R nose
Ideal for finishing blisks, impellers & turbine rotors

ChipSurfer
47W_1 - Non-Ferrous Taper Form Finisher

Ø.312-.500
Chip Surfer Connection
4 Flute, 30° helix, 0.02 mm profile tolerance
Center cutting ball tip
.060" .123" & .157" R nose
Ideal for finishing blisks, impellers & turbine rotors

ChipSurfer
47W_1 - Non-Ferrous Taper Form Finisher (Metric)

Ø8.0-16.0 mm
Chip Surfer Connection
4 Flute, 30° helix, 0.02 mm profile tolerance
Center cutting ball tip
1.5, 2.0, 3.0 & 4.0 R nose
Ideal for finishing blisks, impellers & turbine rotors

RapidThread
47Y_IS_RA - Thread Mill Tip

Internal Thread Milling of ISO Threads
Ø10-16 mm
Chip Surfer Connection

RapidThread
47Y_UN_RA - Thread Mill Tips

Internal Thread Milling of UN Threads
Ø.39"-.63"
Chip Surfer Connection

ChipSurfer
48A_T_RX - Hi-Feed, Neutral

Ø8.00 - 25.00mm
Chip Surfer Connection
6 Flute, neutral geometry
Two flutes center cut for higher ramp capability

ChipSurfer
48D & 48J - 90° End Mill Tip

Ø8-12 mm
Chip Surfer Connection
6 Flute, 30 or 45° Helix
.7xD Flute Length
Non-Center Cutting
Corner: Sharp, 0.5, 1.0 & 1.5 R

ChipSurfer
48D & 48J - 90° End Mill Tip

Ø.312-0.500"
Chip Surfer Connection
6 Flute, 30 or 45° Helix
.7xD Flute Length
Non-Center Cutting
Corner: Sharp, .015", .031", & .062" R

ChipSurfer
48D 49D - 90° Finish End Mill (1.5xD Flute)

Ø8-25 mm
Chip Surfer Connection
7 & 9 Flute, Different Helix & Variable Pitch
1.5xD Flute Length
Non-Center Cutting
Corner: 0.5 0.8 & 1.0 mm R
Ideal for finishing!

ChipSurfer
48D 49D - 90° Finishing End Mill (1.5xD Flute)

Ø.312-1.000"
Chip Surfer Connection
7 & 9 Flute, Different Helix & Variable Pitch
1.5xD Flute Length
Non-Center Cutting
Corner: .015" & .031"R
Ideal for finishing!

ChipSurfer
48D_RQ - 90° Variable Pitch Tip, SS & Hi-Temps

Ø.312-1.000"
Chip Surfer Connection
6 Flute, 35°/38° Helix
.7xD Flute Length
Unequal spacing between flutes to diffuse vibration
Center Cutting
Corner: .015", .020", .030", .040" R
Ideal for Inconel & Hi-Temp Alloys

ChipSurfer
48D_RQ - 90° Variable Pitch Tip, SS & Hi-Temps

Ø8.00 - 25.00 mm (Metric)
Chip Surfer Connection
6 Flute, 35°/38° Helix
.7xD Flute Length
Unequal spacing between flutes to diffuse vibration
Center Cutting
Corner: .015", .020", .031", .039", .118", .157" R
Ideal for Inconel & Hi-Temp Alloys

ChipSurfer
48U - Backdraft Toroidal Tip (Metric)

Ø8.00 - 16.00mm
Chip Surfer Connection
6 Flute, 30° Helix
Corners: .031", .062", .125", .200" R

ChipSurfer
48W - Taper Form Finisher

Ø0.312 - 0.500"
Chip Surfer Connection
6 Flute, 30° helix, .0078" profile tolerance
Center cutting ball tip
.060" .123" & .157" R nose
Ideal for finishing blisks, impellers & turbine rotors

ChipSurfer
48W - Taper Form Finisher

Ø8.00 - 12.00 mm
Chip Surfer Connection
6 Flute, 30° helix, 0.02 mm profile tolerance
Center cutting ball tip
1.5, 2.0, & 3.0 mm R nose
Ideal for finishing blisks, impellers & turbine rotors

ChipSurfer
4RB - Ball Nose Blanks

Ø.315 - .787"
Chip Surfer Connection
Grades: IN04S, IN05S & IN06S

ChipSurfer
4RJ - End Mill Rod

Ø.315-1.001"
Chip Surfer Connection
Grades: IN04S, IN05S & IN06S

ChipSurfer
4RJ - T-Slot Rod

Ø.543-1.401"
Chip Surfer Connection
Grade: IN30M

ChipSurfer
CND - Flat Bot Drill/C'Bore

Ø.312-.750"
Chip Surfer Connection
1.2xD Drill Depth
2 Flute, Center-Cutting
Ideal for shallow drilling, counterboring & creating flat bottom in holes, even on inclined or uneven surfaces

ChipSurfer
CND - Flat Bottom Drill/C'Bore

Ø8-20 mm
Chip Surfer Connection
1.2xD Drill Depth
2 Flute, Center-Cutting
Ideal for shallow drilling, counterboring & creating flat bottom in holes, even on inclined or uneven surfaces

HiPosSFeedV
12J1A - 90° B-Draft & Hi-Feed

Ø8 -12 mm
Chip Surfer Connection
5 mm Insert with 2 indexes
90°: 5 mm DOC, Hi-Feed: 0.5 mm DOC
32-63 Ra surface finishes when using wiper (WEP)
Insert corners: .008" .015" R & Hi-Feed
Backdraft insert option to reduce vibration for long reach applications
V-Bottom pocket fosters easy insert indexing & eliminates insert screw stress

HydroMax
BT*FC*HYDRO

BT MAS-403 Face Contact
Hydraulic Milling Chuck (Metric)
High runout accuracy of < 0.003 mm
For use in Reaming, Drilling, Finish Milling, and fine, accurate machining applications
Balanced G2.5@18,000 RPM
Chucking forces will be reduced by 25% when using sleeves
*See Notes below

HydroMax
BT*HYDRO

BT MAS-403
Hydraulic Milling Chuck (Metric)
High runout accuracy of < 0.003 mm
For use in Reaming, Drilling, Finish Milling, and fine, accurate machining applications
BT30/BT40 balanced G2.5@18,000 RPM
BT50 balanced G2.5@12,000 RPM
Chucking forces will be reduced by 25% when using sleeves
*See Notes below

HydroMax
BT*HYDRO*HD

BT MAS-403
Heavy Duty Hydraulic Milling Chuck (Metric)
High runout accuracy of < 0.003 mm
For use in Reaming, Drilling, Tapping, and difficult high volume machining applications
Balanced G2.5@25,000 RPM
Chucking forces will be reduced by 25% when reduction sleeves are used
*See Notes below

HydroMax
C*HYDRO*HD

C-Adapter (ISO 26623-1)
Heavy Duty Hydraulic Milling Chuck (Metric)
Quick Change Holder
Runout Accuracy <0.003 mm
High Torque Transmission
Recommended for chatter dampening when machining high temperature alloys such as titanium
Chucking forces will be reduced by 25% when using sleeves
Balanced G2.5@25,000 RPM
*See Notes below

HydroMax
DIN69871*HYDRO

DIN69871 V-Flange
Hydraulic Milling Chuck (Metric)
High runout accuracy of < 0.003 mm
For use in Reaming, Drilling, Finish Milling, and fine, accurate machining applications
DIN69871-40 balanced G2.5@18,000 RPM
DIN69871-50 balanced G2.5@12,000 RPM
Chucking forces will be reduced by 25% when using sleeves
*See Notes below

HydroMax
DIN69871*HYDRO*HD

DIN69871 / SK V-Flange
Heavy Duty Hydraulic Milling Chuck (Metric)
High runout accuracy of < 0.003 mm
For use in Reaming, Drilling, Tapping, and difficult high volume machining applications
Balanced G2.5@25,000 RPM
Chucking forces will be reduced by 25% when using sleeves
*See Notes below

Tool Holders
ER*SEAL*AA JET

DIN 6499/ISO 15488-B Collet
Single Diameter (Metric)
8 Slot Rubber Sealed Design with 4 Cooling Jets directing coolant flow to the cutting edge
AA High Precision
0.005 mm TIR
Collapse Range 0.2 mm Max
Super Finish Surface with Anti-Corrosion protection
100 Bar Max
For use with solid shank cutting tools
Recommended for improved runout & clamping torque

Tool Holders
ER*SPR

ER Series DIN 6499 /ISO15488-B Spring Collet
Inch/Metric Combination
.0004" TIR
Hard Touch Coated
NOTE: ER11 COLLETS SHOWN WITH .039" (1 mm) CLAMPING RANGE HAVE BEEN PHASED OUT AND REPLACED WITH .020" (0.5 mm) CLAMPING RANGE

Tool Holders
ER*SPR*AA

ER Series DIN 6499 Spring Collet
Inch/Metric Combination
AA High Precision
.0002" TIR
Hard Touch coated

HydroMax
HSKA*HYDRO

HSK-A (DIN 69893/A)
Hydraulic Milling Chuck (Metric)
HSKA50, A63 balanced G2.5@25,000RPM
HSKA80, A100 balanced G2.5@18,000RPM
Note: Chucking forces will be reduced by 25% when optional reduction sleeves are used
*See additional notes below

HydroMax
HSKA*HYDRO Long

HSK-A (DIN 69893/A)
Hydraulic Milling Chuck (Metric)
HSKA50, A63 balanced G2.5@25,000RPM
HSKA80, A100 balanced G2.5@18,000RPM
Note: Chucking forces will be reduced by 25% when optional reduction sleeves are used
*See additional notes below

Tool Holders
SC*HYDRO

OBSOLETE - See SC*HYDRO*HD
Sealed Reduction Sleeve (Metric)
For use in hydraulic milling chucks
Note: Sleeves are compatible with all cylindrical shanks and flatted shanks 6-20 mm diameter (Sleeves are not recommended for use with flatted shanks over 20 mm diameter)

HydroMax
SC*HYDRO

Sealed Reduction Sleeve (Inch to Metric)
For use in hydraulic milling chucks
Max Runout 0.0001"
Note: Sleeves are compatible with all cylindrical shanks and Weldon shanks .250"-.750" diameter (Sleeves are not recommended for use with Weldon shanks over .750" diameter)

HydroMax
SC*HYDRO*HP

Sealed Reduction Sleeve (Metric)
For use in hydraulic milling chucks
Runout Accuracy <0.003 mm
Max Coolant Pressure 85 Bar
Note: Sleeves are compatible with all cylindrical shanks and flatted shanks 6-20 mm diameter (Sleeves are not recommended for use with flatted shanks over 20 mm diameter)

Tool Holders
SC*SPR

Straight Sleeve/Collet (Metric)
For use with MAXIN Power Milling Chucks
Preset Screw available for tool positioning (Sold Separately)
*Chucking forces will be reduced by 25% when optional reduction sleeves are used

Tool Holders
SC*SPR INCH/METRIC

Straight Sleeve/Collet (Inch OD to Metric ID)
For use with Power Milling Chucks
Chucking forces will be reduced by 25% when optional reduction sleeves are used

Chip Surfer Shanks

Milling

Holemaking

ISO Turning
Grade &
Chipbreaker

Turning
Grades

Turning
Chipbreakers

Turning Inserts

Turning Holders & Boring Bars

Turning Holders & Boring Bars

Machining
App

RapidThread
Advisor

Product Lines

Industries

QwikMod

Big Cutter One - Next Stop

Big Cutter Two - Next Stop

In-Person
Seminars

Mobile
Seminars

Tech
Support

Customer
Service

EDP: 4558796
Part: S012T05SA150
Series: STSK - Steel Shank, Chamfered Neck

Product Series Features:

Notes:

Choose a Section

Milling

Holemaking

ISO TurningGrade &Chipbreaker

TurningGrades

TurningChipbreakers

Turning Inserts

Turning Holders & Boring Bars

Turning Holders & Boring Bars

MachiningApp

RapidThreadAdvisor

Catalogs

Ingersoll TV

Product Lines

Industries

QwikMod

Our Most Recent QwikCuts

Big Cutter One - Next Stop

Big Cutter Two - Next Stop

In-PersonSeminars

MobileSeminars

Our Upcoming Trade Shows

Address:

Phone or E-Mail:

TechSupport

CustomerService

EDP: 4558796 Part: S012T05SA150 Series: S*T*SK - Steel Shank, Chamfered Neck

Product Series Features:

Notes:

Choose a Section

ISO Turning
Grade &
Chipbreaker

Turning
Grades

Turning
Chipbreakers

Machining
App

RapidThread
Advisor

In-Person
Seminars

Mobile
Seminars

Tech
Support

Customer
Service

EDP: 4558796
Part: S012T05SA150
Series: STSK - Steel Shank, Chamfered Neck
