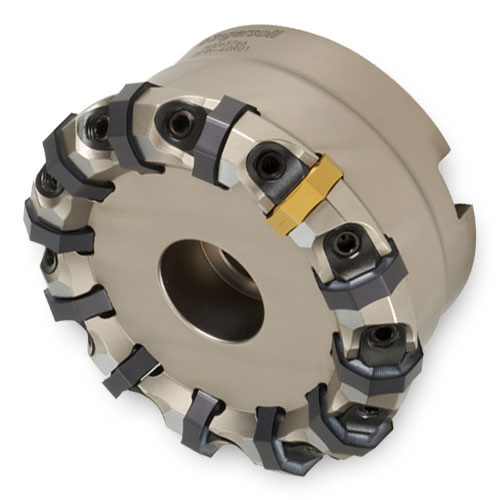

EDP: 3030353 Part: OP1N-12L01 Series: OP1N - 45° Face Mill with Wedge-Held Inserts
Available : 3
Product Series Features:
- Ø3.000-12.000"
- .20" Depth of cut
- 9 mm Inserts with 16 indexes
- 20-40 Ra surface finishes when using wiper in one pocket
- Carbide & SiN options
- RH & LH rotation
- Great price-per-edge economy!
Notes:
- Wedge Screw Torque: 4.4 ft-lb / 6 Nm
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP File | |
|---|---|---|---|---|---|---|---|
| 7050512 | 2M0813-01 | 2M0813-01 | Wedge for OctoPlus Wedge for 09 series face mills | n/a | n/a | ||
| 7050333 | SB080-03 | D-M8 | Differential Screw, M8 × 1 × 10 mm and M8 x 1 x 12.5 mm, 29.5 mm OAL, 4 mm Hex Drive | n/a | n/a | ||
| 7007111 | DS-H04T | DS-0039 | 4 mm T-Handle Hex Driver | n/a | n/a |
