Home > Rapid-Thread > NPT Helical (External & Internal) > LYER37115NT

EDP:

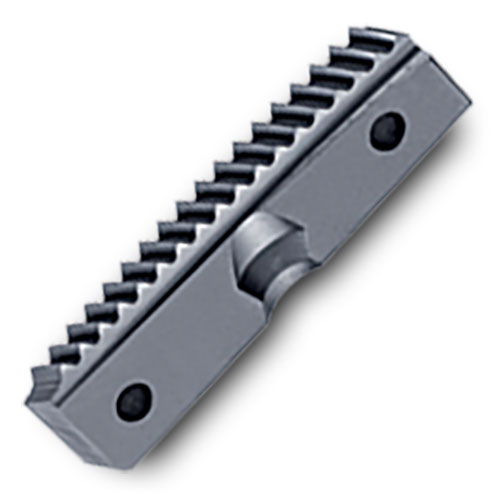

Part: LYER37115NT
Series: NPT Helical (External & Internal)

INSL Insert Length

1.457 (37.0 mm)

W1 Width

0.469 (11.9 mm)

S1 Thickness

0.197 (5.0 mm)

PNA Profile Included Angle

60

THFT Thread Form Type

NPT60 - National Pipe Thread 60°

TTP Thread Type

External & Internal

TPT Thread Profile Type

Full

TPI Threads Per Inch

11.5

NOI Number of Indexes

1

Product Series Features:

Helical Rapid Thread Inserts
ANSI/ASME B1.20.1-1983

INSL - Insert Length	1.457 (37.0 mm)
W1 - Width	0.469 (11.9 mm)
S1 - Thickness	0.197 (5.0 mm)
PNA - Profile Included Angle	60
THFT - Thread Form Type	NPT60 - National Pipe Thread 60°
TTP - Thread Type	External & Internal
TPT - Thread Profile Type	Full
TPI - Threads Per Inch	11.5
NOI - Number of Indexes	1

Available Grades
Product Bulletins

	Edp	Part Number	Part Number2	Grade
	6214611	LYER37115NT I IN2005	LYER37115NT IN2005	IN2005

NEW-129-1 Rapid Thread Helical
