Home > Rapid-Thread > LYEU > LYEU30500IS

EDP:

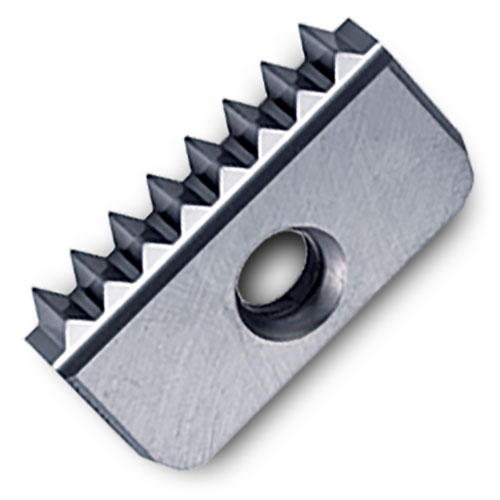

Part: LYEU30500IS
Series: LYEU

INSL Insert Length

1.181 (30.0 mm)

W1 Width

0.630 (16.0 mm)

S1 Thickness

0.217 (5.5 mm)

PNA Profile Included Angle

60

THFT Thread Form Type

M60 - ISO Metric 60°

TTP Thread Type

Internal

TPT Thread Profile Type

Full

TP Thread Pitch

5.00 mm

NOI Number of Indexes

1

Product Series Features:

Rapid Thread Inserts

INSL - Insert Length	1.181 (30.0 mm)
W1 - Width	0.630 (16.0 mm)
S1 - Thickness	0.217 (5.5 mm)
PNA - Profile Included Angle	60
THFT - Thread Form Type	M60 - ISO Metric 60°
TTP - Thread Type	Internal
TPT - Thread Profile Type	Full
TP - Thread Pitch	5.00 mm
NOI - Number of Indexes	1

Photo of Rapid-Thread

Rapid-Thread
MTE D - Steel Indexable Thread Mill

Single Flute
Weldon Shank
12-40 mm Inserts
Coolant Thru

Photo of Rapid-Thread

Rapid-Thread
MTE D-2 - Steel Indexable Thread Mill

Multiple Flutes
Weldon Shank
14-40 mm Inserts
Coolant thru

Photo of Rapid-Thread

Rapid-Thread
MTF D - Indexable Thread Mill

Multiple Flutes
21-40 mm Insert
Coolant thru

Operating Guidelines

NEW-127-2 Rapid Thread Indexable Straight Line
