Home > Rapid-Thread > LYEU > LYEU21100IS-X

EDP:

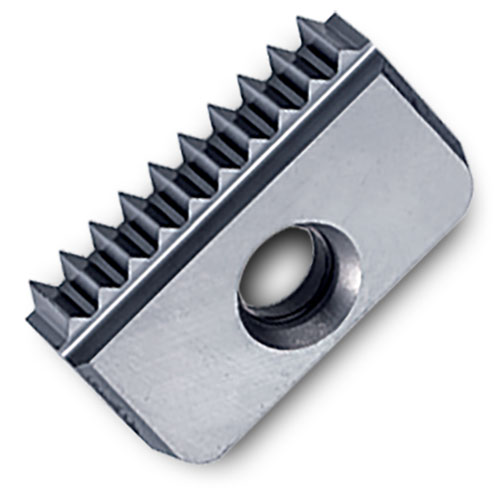

Part: LYEU21100IS-X
Series: LYEU

INSL Insert Length

0.827 (21.0 mm)

W1 Width

0.472 (12.0 mm)

S1 Thickness

0.185 (4.7 mm)

PNA Profile Included Angle

60

THFT Thread Form Type

M60 - ISO Metric 60°

TTP Thread Type

External

TPT Thread Profile Type

Full

TP Thread Pitch

1.00 mm

NOI Number of Indexes

2

Product Series Features:

Rapid Thread Inserts

INSL - Insert Length	0.827 (21.0 mm)
W1 - Width	0.472 (12.0 mm)
S1 - Thickness	0.185 (4.7 mm)
PNA - Profile Included Angle	60
THFT - Thread Form Type	M60 - ISO Metric 60°
TTP - Thread Type	External
TPT - Thread Profile Type	Full
TP - Thread Pitch	1.00 mm
NOI - Number of Indexes	2

Photo of Rapid-Thread

Rapid-Thread
MTE D - Steel Indexable Thread Mill

Single Flute
Weldon Shank
12-40 mm Inserts
Coolant Thru

Photo of Rapid-Thread

Rapid-Thread
MTE D-2 - Steel Indexable Thread Mill

Multiple Flutes
Weldon Shank
14-40 mm Inserts
Coolant thru

Photo of Rapid-Thread

Rapid-Thread
MTE D-C - Carbide Indexable Thread Mill

Single Flute
Cylindrical Shank
Coolant thru

Photo of Rapid-Thread

Rapid-Thread
MTF D - Indexable Thread Mill

Multiple Flutes
21-40 mm Insert
Coolant thru

Operating Guidelines

NEW-127-2 Rapid Thread Indexable Straight Line
