Home > Rapid-Thread > LYEU > LYEU14140NT

EDP:

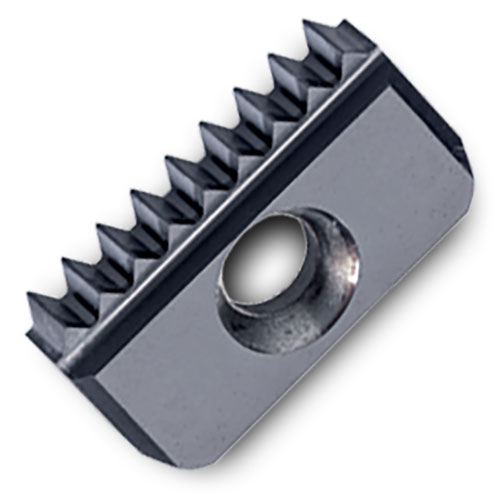

Part: LYEU14140NT
Series: LYEU

INSL Insert Length

0.551 (14.0 mm)

W1 Width

0.295 (7.5 mm)

S1 Thickness

0.122 (3.1 mm)

PNA Profile Included Angle

60

THFT Thread Form Type

NPT60 - National Pipe Thread 60°

TTP Thread Type

External & Internal

TPT Thread Profile Type

Full

TPI Threads Per Inch

14

NOI Number of Indexes

1

Product Series Features:

Rapid Thread Inserts

INSL - Insert Length	0.551 (14.0 mm)
W1 - Width	0.295 (7.5 mm)
S1 - Thickness	0.122 (3.1 mm)
PNA - Profile Included Angle	60
THFT - Thread Form Type	NPT60 - National Pipe Thread 60°
TTP - Thread Type	External & Internal
TPT - Thread Profile Type	Full
TPI - Threads Per Inch	14
NOI - Number of Indexes	1

Photo of Rapid-Thread

Rapid-Thread
MTE D - Steel Indexable Thread Mill

Single Flute
Weldon Shank
12-40 mm Inserts
Coolant Thru

Photo of Rapid-Thread

Rapid-Thread
MTE D-2 - Steel Indexable Thread Mill

Multiple Flutes
Weldon Shank
14-40 mm Inserts
Coolant thru

Photo of Rapid-Thread

Rapid-Thread
MTE D-C - Carbide Indexable Thread Mill

Single Flute
Cylindrical Shank
Coolant thru

Operating Guidelines

NEW-127-2 Rapid Thread Indexable Straight Line
