EDP: 2937105 Part: K01TRM50INCH Series: K01 TRM 50
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Available : 19

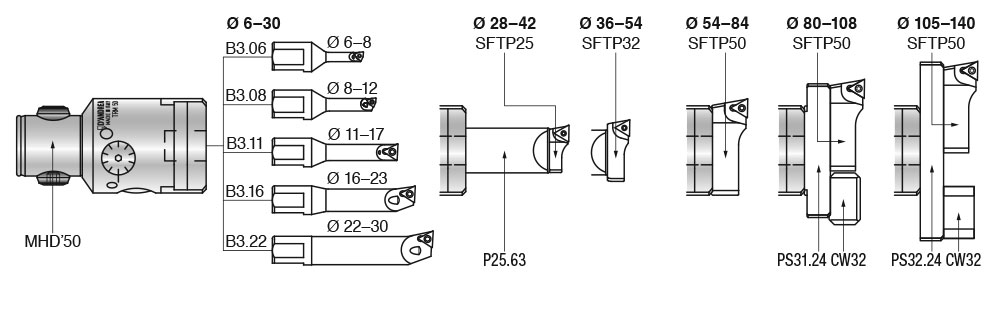

Product Series Features:
- Dia. Range: .236" - 5.512"
- (6.0mm-140mm)
- Contents:
- (1) TRM50 or TRM50INCH
- (1) B3.06, (1) B3.08, (1) B3.11, (1) B3.16, (1) B3.22
- (1) PS31.24, (1) PS32.24
- (1) P25.63
- (1) SFTP25, (1) SFTP32, (1) SFTP50
- (1) BM10
- (5) TPGX 090202L, (1) TPGX 110302L
- (2) WCGT 020102L
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 3240183 | 455005060500 | TRM50INCH | Boring Head | MHD 50 | n/a | n/a | n/a | |
| 3240051 | 572010506001 | B3.06 | NA | NA | n/a | n/a | n/a | |
| 3240052 | 572010508001 | B3.08 | NA | NA | n/a | |||
| 3240054 | 572010511001 | B3.11 | NA | NA | n/a | |||
| 3240057 | 572010516001 | B3.16 | NA | NA | n/a | |||
| 3240059 | 572010522001 | B3.22 | NA | NA | n/a | |||
| 3240032 | 470500525001 | SFTP25 | Finish Cartridge | Insert Series: TPGX 0902... | n/a | |||
| 3240034 | 470500532001 | SFTP32 | Finish Cartridge | Insert Series: TPGX 0902... | n/a | |||
| 3240085 | 470500550001 | SFTP50 | Finish Cartridge | Insert Series: TPGX 1103... | n/a | |||
| NA | TPGX730.5L | NA | NA | n/a | n/a | n/a | ||
| NA | TPGX220.5L | NA | NA | n/a | n/a | n/a |
