EDP: 1927155 Part: P3N1F-.125A062L082R008C Series: P3N1F & P3N2F - 3-Flute 90° SCEM

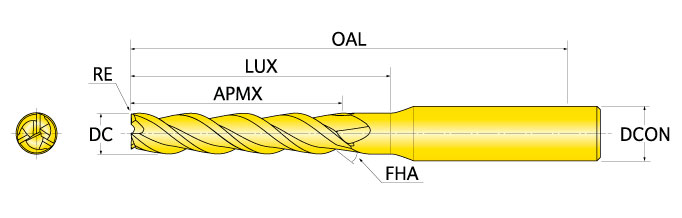

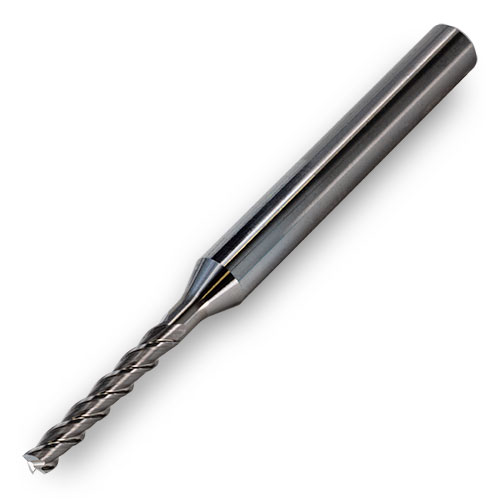

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 6
International: 6
Product Series Features:
- (Primo-Alu_F) for Finishing Aluminum
- Ø.125" - 1.000"
- Cylindrical shank
- 3-Flute
- Coolant thru for .250" DC or larger
- Variable Pitch
- Variable (Different) Helix, 40° Avg.
- 4x, 5x, 6x, 7xD depth of cut (APMX )
- Corner Radius: .008" .015" .030" .060" .090" .125"
- Grade: IN05S
