Series: BDE
Product Series Features:
- Form inserts with 2 indexes
Part Number |
Application |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|

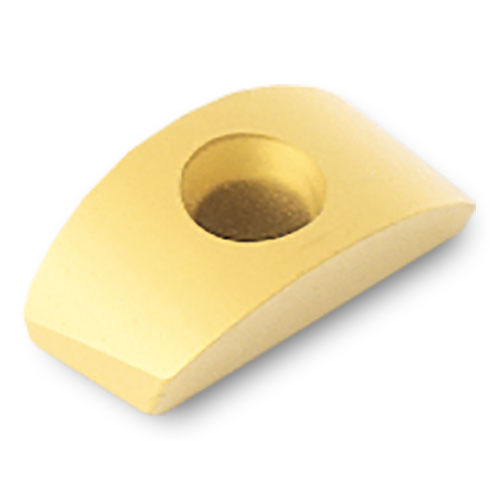

| BDE223R001 | Standard | - | 0.313 | 0.530 | 0.200 | 2 | Right | |
| BDE223R060 | Precision | - | 0.313 | 0.530 | 0.200 | 2 | Right | |
| BDE323R001 | Standard | - | 0.375 | 0.500 | 0.188 | 2 | Right | |
| BDE323R002 | Standard | - | 0.500 | 0.375 | 0.188 | 2 | Right | |
| BDE323R003 | Standard | - | 0.500 | 0.375 | 0.188 | 2 | Right | |
| BDE323R004 | Standard | - | 0.375 | 0.500 | 0.188 | 2 | Right | |
| BDE323R005 | Standard | - | 0.375 | 0.560 | 0.188 | 2 | Right | |
| BDE323R034 | Standard | - | 0.472 | 0.600 | 0.190 | 2 | Right | |
| BDE323R038 | Heavy-Duty | - | 0.472 | 0.600 | 0.190 | 2 | Right | |
| BDE323R048 | Standard | - | 0.472 | 0.535 | 0.190 | 2 | Right | |
| BDE324R002 | Standard | - | 0.375 | 0.625 | 0.250 | 2 | Right | |
| BDE433R001 | Standard | - | 0.813 | 0.500 | 0.225 | 2 | Right | |
| BDE433R002 | Heavy-Duty | - | 0.500 | 0.813 | 0.250 | 2 | Right | |
| BDE434R001 | Standard | - | 0.500 | 0.813 | 0.250 | 2 | Right | |
| BDE434R002 | Standard | - | 0.500 | 0.813 | 0.250 | 2 | Right | |
| BDE445R002 | Heavy-Duty | - | 0.563 | 1.125 | 0.313 | 2 | Right | |
| BDE445R003 | Standard | - | 1.125 | 0.563 | 0.313 | 2 | Right |
