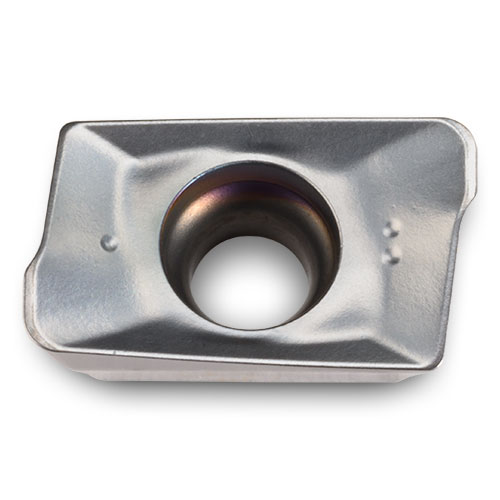

Series: APKT09T3 - Multi-Purpose Insert
Product Series Features:
- Pressed rake face geometry promotes efficient chip formation
- Integrated wiper flat on face for producing surface finishes as good as 32 Ra
- Designed for multiple materials and applications
- 2 Indexes
- Fits series 2S-TE90AP cutters
Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|---|
| APKT09T308R-EM | Multi-Purpose | 0.031 | 0.039 | 0.346 | 0.416 | 0.244 | 0.150 | 2 | Right | |
| APKT09T316R-EM | Multi-Purpose | 0.062 | 0.027 | 0.346 | 0.416 | 0.244 | 0.150 | 2 | Right | |
| APKT09T3PER-EM | Multi-Purpose | 0.015 | 0.047 | 0.346 | 0.415 | 0.244 | 0.150 | 2 | Right |
Notes:
- **Note, OBSOLETE product line.
- Refer to the following for stocked alternatives:
- HiPosSFeedV, series 12J1A
- HiPosTrio, series 1KJ1B or 1KJ1D
- DiPosDuo, series 1TJ1B or 1TJ1D
- DiPosTetra, series 1TJ1C
- HiPosMicro, series 12J1D
