Series: Cartridges for 4W2A Face Mills
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:

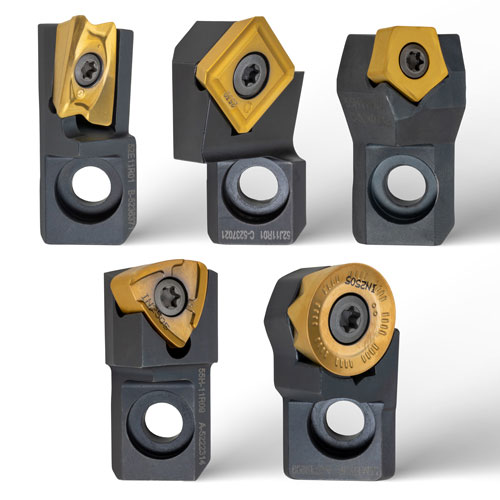

- Cartridges for 4W2A Face Mill

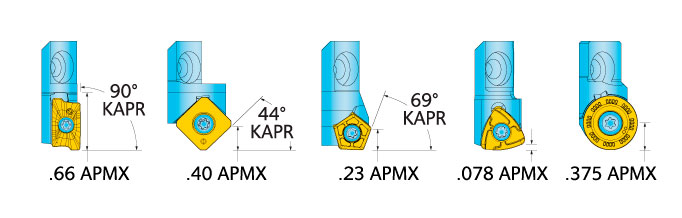

- Depth of Cut Range: 0.078 - 0.660"
- 90°, Lead Angle, & Hi-Feed Options
- AOMT18, SHE_15, PNC_08, RJLT19, & UNEU13 Inserts
EDP |
Part Number |
KAPR Cutting Edge Angle |
APMX Depth of Cut Max. |
LF Functional Length |
WF Functional Width |
HF Functional Height |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 7031059 | 52E-11R01 | 90 | 0.660 | 1.594 | 0.570 | 0.518 | ||||
| 7031061 | 52J-11R01 | 44 | 0.400 | 1.592 | 0.927 | 0.641 | ||||
| 3023960 | 55H-11R07 | 69 | 0.230 | 1.500 | 0.683 | 0.623 | ||||
| 2913242 | 55H-11R09 | - | 0.078 | 1.509 | 0.695 | 0.585 | ||||
| 2919901 | 55M11R06 | - | 0.375 | 1.500 | 0.806 | 0.600 |
