EDP: 2919901 Part: 55M11R06 Series: Cartridges for 4W2A Face Mills

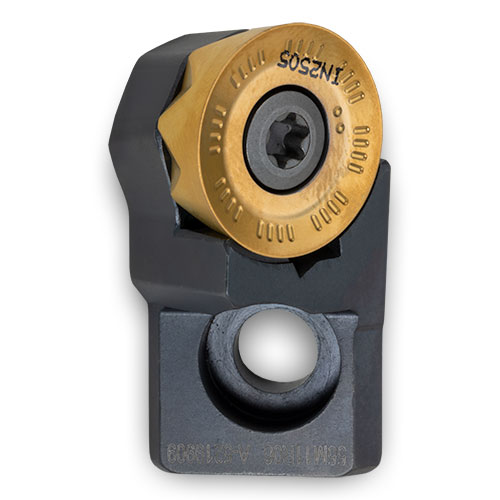

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 18
Product Series Features:
- Cartridges for 4W2A Face Mill
- 90°, Lead Angle, Button & Hi-Feed insert options
- Depth of Cut Range: 0.078 - 0.660"
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 4353068 | SM60-135-R0 | SM60-135-R0 | Screw, M6 × 0.75 × 13.5 mm, T25 Torx drive | n/a | n/a | n/a | ||
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 2920530 | DS-A00-.25-T | DS-A00-.25-T | Qwik-Torque T-Flying Driver Handle with 1/4" Drive; For use with Preset Torque Adapter units 17.7 in lb (2.0N·m) to 44 in lb (5.0N·m) | n/a | n/a | n/a | ||
| 7019607 | DS-T256B | BLD T25/S7 | T25 Torx; 90 mm OAL; 6 mm Hex drive | n/a | n/a | n/a |
