Series: P4M1V & P4M2V - 4-Flute 90° SCEM

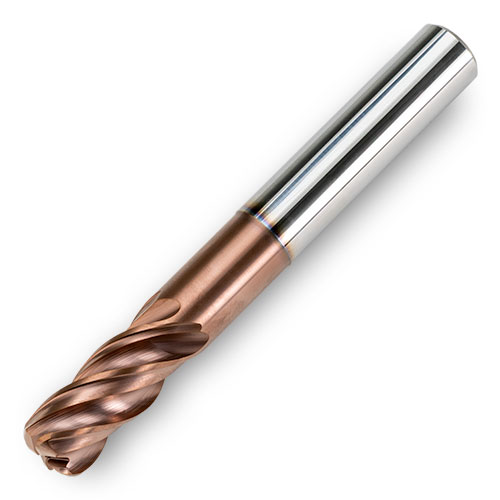

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- SS_V for Various milling operations in Stainless Steel
- Ø.125" - .750" and Coolant thru, .250"DC or larger
- 4-Flute, Cylindrical shank
- Variable Pitch
- Variable (Different) Helix, 36.5° Avg.
- 1.5x, 2xD depth of cut (APMX)
- Up to 4xD useable length (LUX )
- Corner Radius: Sharp .008" .015" .030" .060" .090" .125"
- Grade: IN2205 (multi-layer PVD AlTiSiN)
EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
ULDR Usable Length Dia. Ratio |
OAL Overall Length |
DN Neck Dia. |
DCON Shank Dia. |
CSP Coolant |
RMPX Ramp Angle Max. |

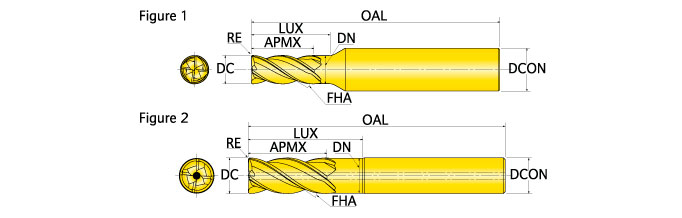

FIGURE Figure |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1928693 | P4M1V-.125A031L037R000C | 0.1250 | Sharp | 0.312 | 0.375 | 3× | 2.00 | 0.121 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928694 | P4M1V-.125A031L050R000C | 0.1250 | Sharp | 0.312 | 0.500 | 4× | 2.13 | 0.121 | 0.250 | No | 2.0 | 1 | NA | |||
| 1927631 | P4M1V-.125A031L037R008C | 0.1250 | 0.008 R | 0.312 | 0.375 | 3× | 2.00 | 0.121 | 0.250 | No | 2.0 | 1 | NA | |||
| 1927632 | P4M1V-.125A031L050R008C | 0.1250 | 0.008 R | 0.312 | 0.500 | 4× | 2.13 | 0.121 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928695 | P4M1V-.125A031L037R015C | 0.1250 | 0.015 R | 0.312 | 0.375 | 3× | 2.00 | 0.121 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928696 | P4M1V-.125A031L050R015C | 0.1250 | 0.015 R | 0.312 | 0.500 | 4× | 2.13 | 0.121 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928697 | P4M1V-.156A039L046R000C | 0.1562 | Sharp | 0.391 | 0.469 | 3× | 2.00 | 0.152 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928698 | P4M1V-.156A039L062R000C | 0.1562 | Sharp | 0.391 | 0.625 | 4× | 2.25 | 0.152 | 0.250 | No | 2.0 | 1 | NA | |||
| 1927633 | P4M1V-.156A039L046R008C | 0.1562 | 0.008 R | 0.391 | 0.469 | 3× | 2.00 | 0.152 | 0.250 | No | 2.0 | 1 | NA | |||
| 1927634 | P4M1V-.156A039L062R008C | 0.1562 | 0.008 R | 0.391 | 0.625 | 4× | 2.25 | 0.152 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928699 | P4M1V-.156A039L046R015C | 0.1562 | 0.015 R | 0.391 | 0.469 | 3× | 2.00 | 0.152 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928700 | P4M1V-.156A039L062R015C | 0.1562 | 0.015 R | 0.391 | 0.625 | 4× | 2.25 | 0.152 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928701 | P4M1V-.187A046L056R000C | 0.1875 | Sharp | 0.469 | 0.563 | 3× | 2.13 | 0.184 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928702 | P4M1V-.187A046L075R000C | 0.1875 | Sharp | 0.469 | 0.750 | 4× | 2.25 | 0.184 | 0.250 | No | 2.0 | 1 | NA | |||
| 1927635 | P4M1V-.187A046L056R008C | 0.1875 | 0.008 R | 0.469 | 0.563 | 3× | 2.13 | 0.184 | 0.250 | No | 2.0 | 1 | NA | |||
| 1927636 | P4M1V-.187A046L075R008C | 0.1875 | 0.008 R | 0.469 | 0.750 | 4× | 2.25 | 0.184 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928703 | P4M1V-.187A046L056R015C | 0.1875 | 0.015 R | 0.469 | 0.563 | 3× | 2.13 | 0.184 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928704 | P4M1V-.187A046L075R015C | 0.1875 | 0.015 R | 0.469 | 0.750 | 4× | 2.25 | 0.184 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928705 | P4M1V-.187A046L056R030C | 0.1875 | 0.030 R | 0.469 | 0.563 | 3× | 2.13 | 0.184 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928706 | P4M1V-.187A046L075R030C | 0.1875 | 0.030 R | 0.469 | 0.750 | 4× | 2.25 | 0.184 | 0.250 | No | 2.0 | 1 | NA | |||
| 1928707 | P4M2V-.250A050L075R000C | 0.2500 | Sharp | 0.500 | 0.750 | 3× | 2.25 | 0.246 | 0.250 | Yes | 2.0 | 2 | NA | |||
| 1928708 | P4M2V-.250A050L100R000C | 0.2500 | Sharp | 0.500 | 1.000 | 4× | 2.50 | 0.246 | 0.250 | Yes | 2.0 | 2 | NA | |||
| 1927637 | P4M2V-.250A050L075R008C | 0.2500 | 0.008 R | 0.500 | 0.750 | 3× | 2.25 | 0.246 | 0.250 | Yes | 2.0 | 2 | NA | |||
| 1927638 | P4M2V-.250A050L100R008C | 0.2500 | 0.008 R | 0.500 | 1.000 | 4× | 2.50 | 0.246 | 0.250 | Yes | 2.0 | 2 | NA | |||
| 1928709 | P4M2V-.250A050L075R015C | 0.2500 | 0.015 R | 0.500 | 0.750 | 3× | 2.25 | 0.246 | 0.250 | Yes | 2.0 | 2 | NA | |||
| 1928710 | P4M2V-.250A050L100R015C | 0.2500 | 0.015 R | 0.500 | 1.000 | 4× | 2.50 | 0.246 | 0.250 | Yes | 2.0 | 2 | NA | |||
| 1928711 | P4M2V-.250A050L075R030C | 0.2500 | 0.030 R | 0.500 | 0.750 | 3× | 2.25 | 0.246 | 0.250 | Yes | 2.0 | 2 | NA | |||
| 1928712 | P4M2V-.250A050L100R030C | 0.2500 | 0.030 R | 0.500 | 1.000 | 4× | 2.50 | 0.246 | 0.250 | Yes | 2.0 | 2 | NA | |||
| 1928713 | P4M2V-.250A050L075R060C | 0.2500 | 0.060 R | 0.500 | 0.750 | 3× | 2.25 | 0.246 | 0.250 | Yes | 2.0 | 2 | NA | |||
| 1928714 | P4M2V-.250A050L100R060C | 0.2500 | 0.060 R | 0.500 | 1.000 | 4× | 2.50 | 0.246 | 0.250 | Yes | 2.0 | 2 | NA | |||
| 1928715 | P4M2V-.312A062L093R000C | 0.3125 | Sharp | 0.625 | 0.938 | 3× | 2.50 | 0.305 | 0.313 | Yes | 2.5 | 2 | NA | |||
| 1928716 | P4M2V-.312A062L125R000C | 0.3125 | Sharp | 0.625 | 1.250 | 4× | 2.75 | 0.305 | 0.313 | Yes | 2.5 | 2 | NA | |||
| 1927639 | P4M2V-.312A062L093R008C | 0.3125 | 0.008 R | 0.625 | 0.938 | 3× | 2.50 | 0.305 | 0.313 | Yes | 2.5 | 2 | NA | |||
| 1927640 | P4M2V-.312A062L125R008C | 0.3125 | 0.008 R | 0.625 | 1.250 | 4× | 2.75 | 0.305 | 0.313 | Yes | 2.5 | 2 | NA | |||
| 1928717 | P4M2V-.312A062L093R015C | 0.3125 | 0.015 R | 0.625 | 0.938 | 3× | 2.50 | 0.305 | 0.313 | Yes | 2.5 | 2 | NA | |||
| 1928718 | P4M2V-.312A062L125R015C | 0.3125 | 0.015 R | 0.625 | 1.250 | 4× | 2.75 | 0.305 | 0.313 | Yes | 2.5 | 2 | NA | |||
| 1928719 | P4M2V-.312A062L093R030C | 0.3125 | 0.030 R | 0.625 | 0.938 | 3× | 2.50 | 0.305 | 0.313 | Yes | 2.5 | 2 | NA | |||
| 1928720 | P4M2V-.312A062L125R030C | 0.3125 | 0.030 R | 0.625 | 1.250 | 4× | 2.75 | 0.305 | 0.313 | Yes | 2.5 | 2 | NA | |||
| 1928721 | P4M2V-.312A062L093R060C | 0.3125 | 0.060 R | 0.625 | 0.938 | 3× | 2.50 | 0.305 | 0.313 | Yes | 2.5 | 2 | NA | |||
| 1928722 | P4M2V-.312A062L125R060C | 0.3125 | 0.060 R | 0.625 | 1.250 | 4× | 2.75 | 0.305 | 0.313 | Yes | 2.5 | 2 | NA | |||
| 1928723 | P4M2V-.375A075L112R000C | 0.3750 | Sharp | 0.750 | 1.125 | 3× | 3.00 | 0.367 | 0.375 | Yes | 2.5 | 2 | NA | |||
| 1928724 | P4M2V-.375A075L150R000C | 0.3750 | Sharp | 0.750 | 1.500 | 4× | 3.25 | 0.367 | 0.375 | Yes | 2.5 | 2 | NA | |||
| 1927641 | P4M2V-.375A075L112R015C | 0.3750 | 0.015 R | 0.750 | 1.125 | 3× | 3.00 | 0.367 | 0.375 | Yes | 2.5 | 2 | NA | |||
| 1927642 | P4M2V-.375A075L150R015C | 0.3750 | 0.015 R | 0.750 | 1.500 | 4× | 3.25 | 0.367 | 0.375 | Yes | 2.5 | 2 | NA | |||
| 1928725 | P4M2V-.375A075L112R030C | 0.3750 | 0.030 R | 0.750 | 1.125 | 3× | 3.00 | 0.367 | 0.375 | Yes | 2.5 | 2 | NA | |||
| 1928726 | P4M2V-.375A075L150R030C | 0.3750 | 0.030 R | 0.750 | 1.500 | 4× | 3.25 | 0.367 | 0.375 | Yes | 2.5 | 2 | NA | |||
| 1928727 | P4M2V-.375A075L112R060C | 0.3750 | 0.060 R | 0.750 | 1.125 | 3× | 3.00 | 0.367 | 0.375 | Yes | 2.5 | 2 | NA | |||
| 1928728 | P4M2V-.375A075L150R060C | 0.3750 | 0.060 R | 0.750 | 1.500 | 4× | 3.25 | 0.367 | 0.375 | Yes | 2.5 | 2 | NA | |||
| 1928729 | P4M2V-.500A100L150R000C | 0.5000 | Sharp | 1.000 | 1.500 | 3× | 3.38 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1928730 | P4M2V-.500A100L200R000C | 0.5000 | Sharp | 1.000 | 2.000 | 4× | 3.88 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1927643 | P4M2V-.500A100L150R015C | 0.5000 | 0.015 R | 1.000 | 1.500 | 3× | 3.38 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1927644 | P4M2V-.500A100L200R015C | 0.5000 | 0.015 R | 1.000 | 2.000 | 4× | 3.88 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1928731 | P4M2V-.500A100L150R030C | 0.5000 | 0.030 R | 1.000 | 1.500 | 3× | 3.38 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1928732 | P4M2V-.500A100L200R030C | 0.5000 | 0.030 R | 1.000 | 2.000 | 4× | 3.88 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1928733 | P4M2V-.500A100L150R060C | 0.5000 | 0.060 R | 1.000 | 1.500 | 3× | 3.38 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1928734 | P4M2V-.500A100L200R060C | 0.5000 | 0.060 R | 1.000 | 2.000 | 4× | 3.88 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1928735 | P4M2V-.500A100L150R090C | 0.5000 | 0.090 R | 1.000 | 1.500 | 3× | 3.38 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1928736 | P4M2V-.500A100L200R090C | 0.5000 | 0.090 R | 1.000 | 2.000 | 4× | 3.88 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1928737 | P4M2V-.500A100L150R125C | 0.5000 | 0.125 R | 1.000 | 1.500 | 3× | 3.38 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1928738 | P4M2V-.500A100L200R125C | 0.5000 | 0.125 R | 1.000 | 2.000 | 4× | 3.88 | 0.488 | 0.500 | Yes | 3.5 | 2 | NA | |||
| 1928739 | P4M2V-.625A125L187R000C | 0.6250 | Sharp | 1.250 | 1.875 | 3× | 4.00 | 0.613 | 0.625 | Yes | 3.5 | 2 | NA | |||
| 1928740 | P4M2V-.625A125L250R000C | 0.6250 | Sharp | 1.250 | 2.500 | 4× | 4.50 | 0.613 | 0.625 | Yes | 3.5 | 2 | NA | |||
| 1928741 | P4M2V-.625A125L187R015C | 0.6250 | 0.015 R | 1.250 | 1.875 | 3× | 4.00 | 0.613 | 0.625 | Yes | 3.5 | 2 | NA | |||
| 1928742 | P4M2V-.625A125L250R015C | 0.6250 | 0.015 R | 1.250 | 2.500 | 4× | 4.50 | 0.613 | 0.625 | Yes | 3.5 | 2 | NA | |||
| 1927645 | P4M2V-.625A125L187R030C | 0.6250 | 0.030 R | 1.250 | 1.875 | 3× | 4.00 | 0.613 | 0.625 | Yes | 3.5 | 2 | NA | |||
| 1927646 | P4M2V-.625A125L250R030C | 0.6250 | 0.030 R | 1.250 | 2.500 | 4× | 4.50 | 0.613 | 0.625 | Yes | 3.5 | 2 | NA | |||
| 1928743 | P4M2V-.625A125L187R060C | 0.6250 | 0.060 R | 1.250 | 1.875 | 3× | 4.00 | 0.613 | 0.625 | Yes | 3.5 | 2 | NA | |||
| 1928744 | P4M2V-.625A125L250R060C | 0.6250 | 0.060 R | 1.250 | 2.500 | 4× | 4.50 | 0.613 | 0.625 | Yes | 3.5 | 2 | NA | |||
| 1928745 | P4M2V-.625A125L187R125C | 0.6250 | 0.125 R | 1.250 | 1.875 | 3× | 4.00 | 0.613 | 0.625 | Yes | 3.5 | 2 | NA | |||
| 1928746 | P4M2V-.625A125L250R125C | 0.6250 | 0.125 R | 1.250 | 2.500 | 4× | 4.50 | 0.613 | 0.625 | Yes | 3.5 | 2 | NA | |||
| 1928747 | P4M2V-.750A150L225R000C | 0.7500 | Sharp | 1.500 | 2.250 | 3× | 4.50 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA | |||
| 1928748 | P4M2V-.750A150L300R000C | 0.7500 | Sharp | 1.500 | 3.000 | 4× | 5.13 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA | |||
| 1928749 | P4M2V-.750A150L225R015C | 0.7500 | 0.015 R | 1.500 | 2.250 | 3× | 4.50 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA | |||
| 1928750 | P4M2V-.750A150L300R015C | 0.7500 | 0.015 R | 1.500 | 3.000 | 4× | 5.13 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA | |||
| 1927647 | P4M2V-.750A150L225R030C | 0.7500 | 0.030 R | 1.500 | 2.250 | 3× | 4.50 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA | |||
| 1927648 | P4M2V-.750A150L300R030C | 0.7500 | 0.030 R | 1.500 | 3.000 | 4× | 5.13 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA | |||
| 1928751 | P4M2V-.750A150L225R060C | 0.7500 | 0.060 R | 1.500 | 2.250 | 3× | 4.50 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA | |||
| 1928752 | P4M2V-.750A150L300R060C | 0.7500 | 0.060 R | 1.500 | 3.000 | 4× | 5.13 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA | |||
| 1928753 | P4M2V-.750A150L225R090C | 0.7500 | 0.090 R | 1.500 | 2.250 | 3× | 4.50 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA | |||
| 1928754 | P4M2V-.750A150L300R090C | 0.7500 | 0.090 R | 1.500 | 3.000 | 4× | 5.13 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA | |||
| 1928755 | P4M2V-.750A150L225R125C | 0.7500 | 0.125 R | 1.500 | 2.250 | 3× | 4.50 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA | |||
| 1928756 | P4M2V-.750A150L300R125C | 0.7500 | 0.125 R | 1.500 | 3.000 | 4× | 5.13 | 0.738 | 0.750 | Yes | 3.5 | 2 | NA |
