EDP: 1928693 Part: P4M1V-.125A031L037R000C Series: P4M1V & P4M2V - 4-Flute 90° SCEM

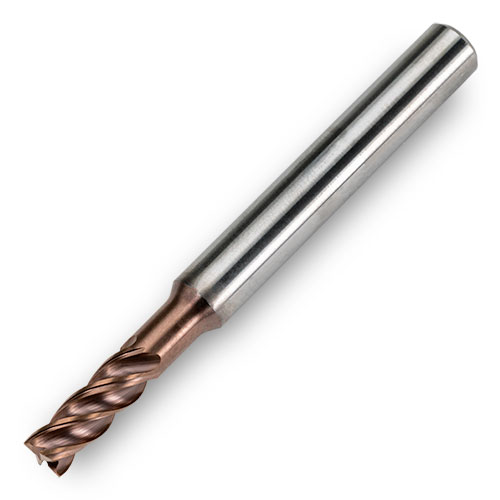

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 15
International: 15
Product Series Features:
- SS_V for Various milling operations in Stainless Steel
- Ø.125" - .750" and Coolant thru, .250"DC or larger
- 4-Flute, Cylindrical shank
- Variable Pitch
- Variable (Different) Helix, 36.5° Avg.

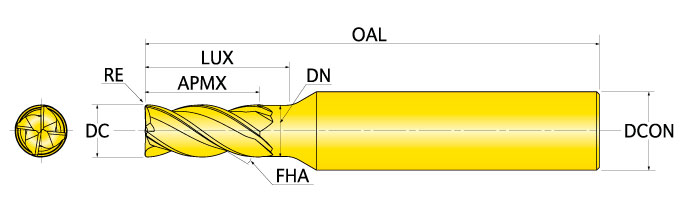

- 1.5x, 2xD depth of cut (APMX)
- Up to 4xD useable length (LUX )
- Corner Radius: Sharp .008" .015" .030" .060" .090" .125"
- Grade: IN2205 (multi-layer PVD AlTiSiN)
