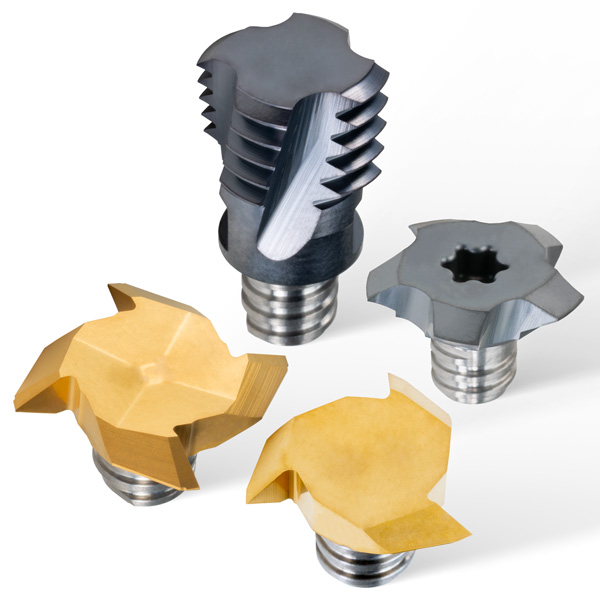

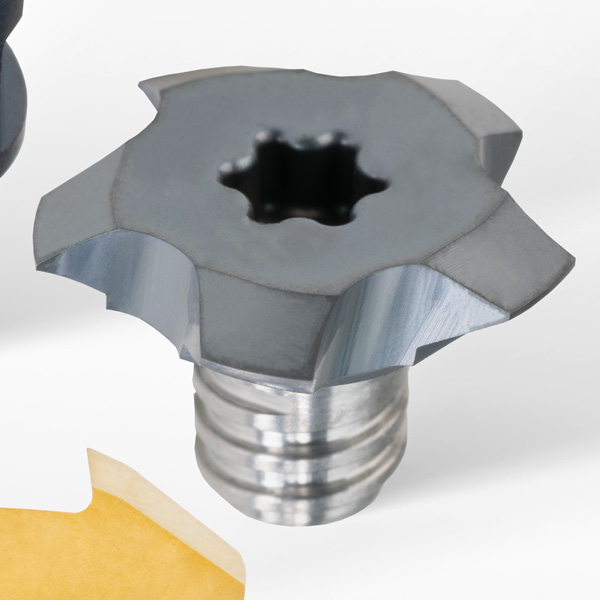

Solid Carbide Modular Threading Tips
Features and Benefits
- Versatility of partial profile allows 1 tip to generate a range of pitches
- Fit Class specific tips for full profile (stronger thread)
- Increased feed rates due to multiple flutes
- 1/3 less HP required versus tapping
- High precision ChipSurfer connection provides excellent repeatability
- Indexing while in machine, no spare parts lost
Product Ranges & Details
Tip Series (# Flutes)
16Y, 46Y (3)
17Y, 47Y (4)
17Y, 47Y (5)
18Y, 48Y (6)
Thread Forms
Partial Profile: Internal & External 55° & 60° Profile Threads
Full Profile: UN, ISO & W
Partial Profile Range
TPI: 5.5 - 48
Pitch: 0.5 – 4.5
Adaptions
T05, T06, T08, T10
Materials
Steel
Stainless Steel
Iron
Non-Ferrous
High-Temp Alloys/Titanium
Hardened Steel
