Premium 3-Flute, Solid Carbide 90° End Mills, Ideal for Finishing Aluminum Alloys

Features and Benefits

• 3-flute 90° SCEM’s for machining aluminum
• Coolant through (Ø.250" and larger) to assist with chip control and heat
• Variable pitch and Variable helix to assist with vibration control
• Unique geometry permits milling into corners with the same radius as the tool without vibration
• Up to 6xD lengths (LUX) provides a deep reach capability for roughing with P3N2R-
• Up to 7xD lengths (APMX) provides a deep reach capability for finishing with P3N2F-
• PrimoAluF Finishing SCEM
• 4x, 5x, 6x, and 7xD APMX (depth-of-cut) maximum provides a deep reach capability
• No vibration when milling into corners with same radius as the tool
• Unique geometry disrupts harmonic vibrations, enabling incredible finishing results at deep depths-of-cut (APMX)

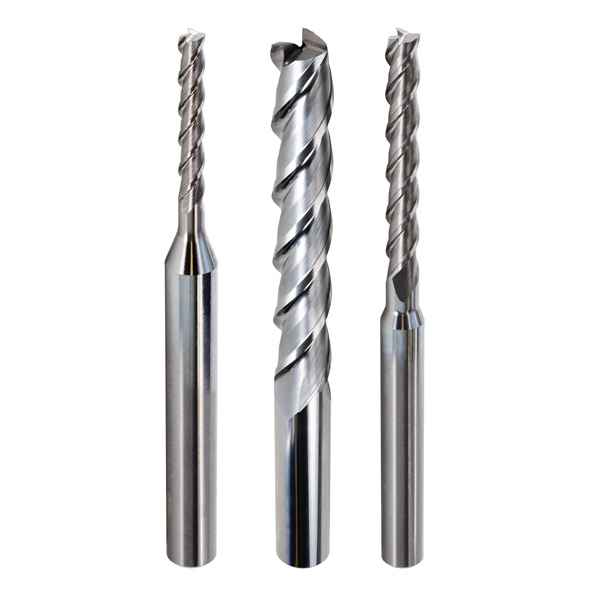

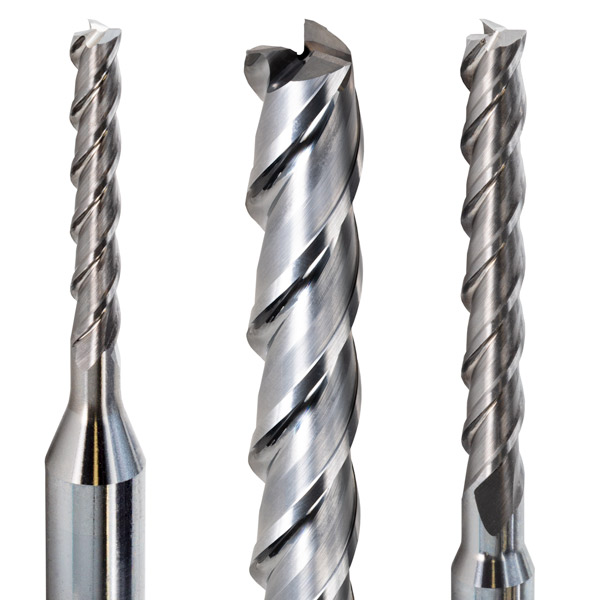

PrimoAluR
(Roughing)

PrimoAluF
(Finishing)
