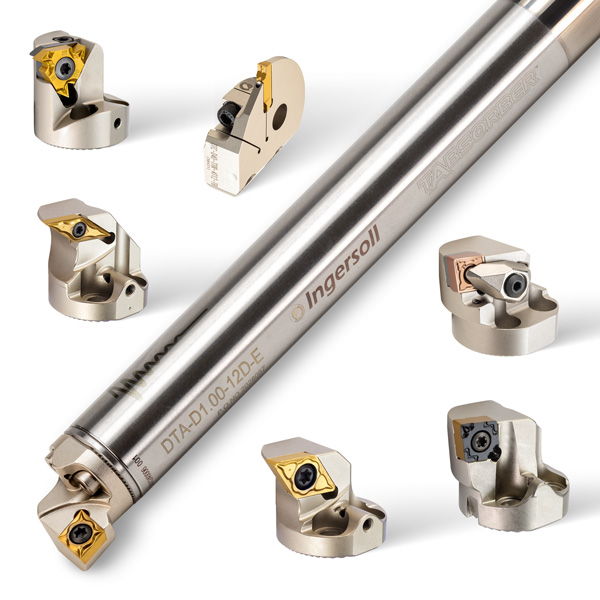

7xD and 10xD Anti-Vibration Boring Bars With Exchangeable Heads


Features and Benefits

  • Internal boring and threading with L/D ratios of 7xD and 10xD
  • Significantly reduce and in some cases completely eliminate vibration
  • Unique damping mechanism located inside the body of the bar
  • Serrated coupling design for robust tightening
  • Internal coolant supply improves chip control & evacuation
  • Multiple head designs for different shape positive & negative inserts

Product Ranges & Details

Lengths:
7xD
10xD

Diameters:
Inch (stocked): .625", .750", 1.00", 1.25", 1.50", 2.00", 2.50
Metric (stocked overseas): 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 60 mm,

Head / Insert Styles:
Positive:
• CCMT 21.5/32.5/43
• DCMT 21.5/32.5
• VBMT 22/33
Negative:
• CNMX 2.22
• DNMG 3.53.5
• DNMX 2.22
• VNMX 2.53
• WNMX 2.53

ID Threading:
16IR / 22IR
