EDP: 2927994 Part: 45N-3704T6RA40 IN2005 Series: 45NMP_RA - Chamfer & Spotting Tip

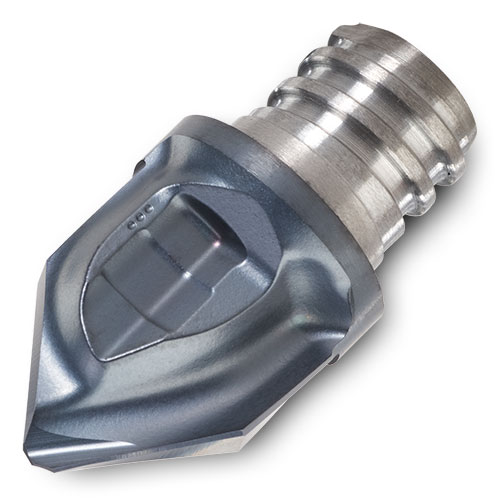

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 34
International: 60
Product Series Features:
- Ø.394 - .750"
- Chip Surfer Connection
- Cutting Edge Angle options: 40°, 50°, 90°
- Included Angle options: 80°, 90°, 100°
- 80° Incl. for countersink according to ANSI B18.3 Flat Head Cap Screw (up to 82°)
- 2 Flute
Notes:
- When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
