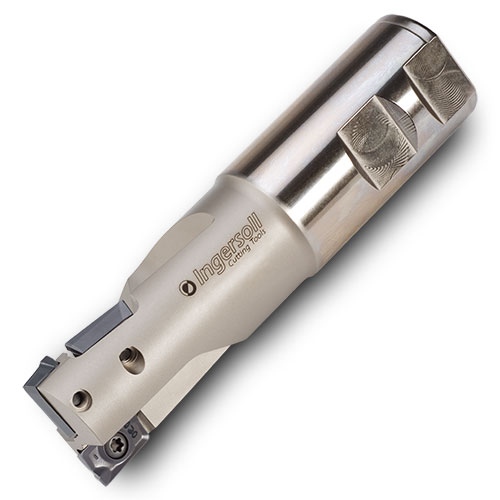

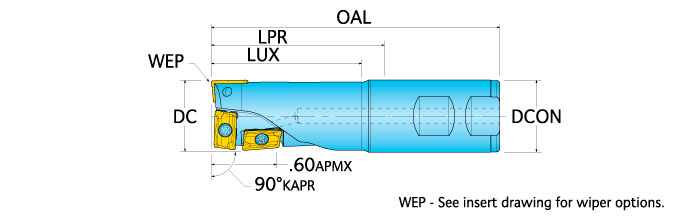

EDP: 3003352 Part: 12S1B1281R01 Series: 12S1B - 90° Center Cutting End Mill
View STEP
Available : 10
Product Series Features:
- Ø1.000" - 1.500" (Weldon)
- 16 mm Insert with 2 Indexes
- Insert corners: .015", .031" R
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7000517 | SM40-093-20 | SE02-82 | Screw, M4 × 0.7 × 9.3 mm, T15 Torx drive | n/a | n/a | n/a | ||
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 7002096 | DS-T156B | BLD T15/S7 | T15 Torx; 90 mm OAL; 6 mm Hex drive | n/a | n/a | n/a | ||
| 2920528 | DT-35-.25 | DT-35-.25 | Torque Adapter Unit preset to 35 in lb (4.0 N·m) for use with the multi-component Qwik Torque system | Optional Accessory item; Sold Separately | n/a | n/a | n/a | |
| 7011883 | DS-T15B1 | DS-T15B1 | T15 Torx Bit, 2.00" OAL; 1/4" Hex drive | Optional Accessory Item; Sold Separately; For Clamp Screw | n/a | n/a | n/a | |
| 2920530 | DS-A00-.25-T | DS-A00-.25-T | Driver Handle for use with multi-component Qwik Torque system Preset Torque Adapters over 2.0Nm | Optional Accessory Item; Sold Separately | n/a | n/a | n/a |
