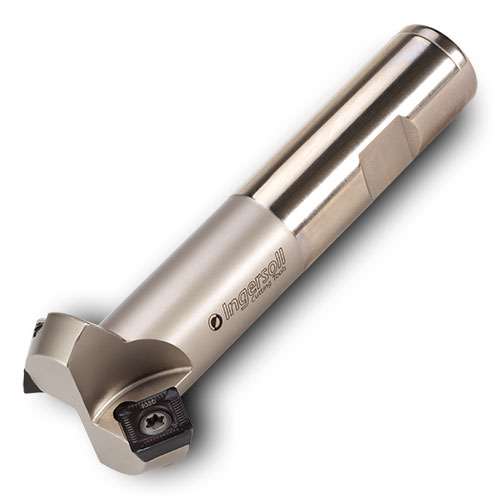

EDP: 3009634 Part: 15M1G-1502084R01 Series: 15_1G - Front-Back Chamfer Mill
View STEP
Available : 5
Product Series Features:
- Ø.910" Min.
- Weldon Shank
- 11 mm Insert with 4 indexes
- Cutting Edge Angles: 45° 60° 75°
- Included Angles: 90° 60° 30°
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7000517 | SM40-093-20 | SE02-82 | Screw, M4 × 0.7 × 9.3 mm, T15 Torx drive | n/a | n/a | n/a | ||
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 7002096 | DS-T156B | BLD T15/S7 | T15 Torx; 90 mm OAL; 6 mm Hex drive | n/a | n/a | n/a | ||
| 2920530 | DS-A00-.25-T | DS-A00-.25-T | Driver Handle for use with multi-component Qwik Torque system Preset Torque Adapters over 2.0Nm | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 2920528 | DT-35-.25 | DT-35-.25 | Torque Adapter Unit preset to 35 in lb (4.0 N·m) for use with the multi-component Qwik Torque system | Optional Accessory item; Sold Separately | n/a | n/a | n/a | |
| 7011883 | DS-T15B1 | DS-T15B1 | T15 Torx Bit, 2.00" OAL; 1/4" Hex drive | Optional Accessory Item; Sold Separately | n/a | n/a | n/a |
