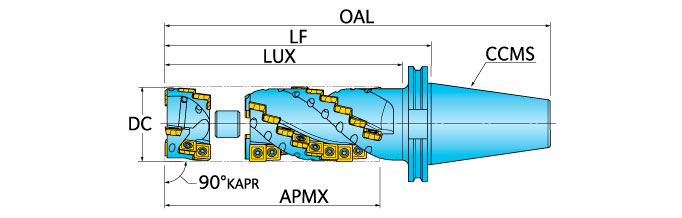

EDP: 3016782 Part: 23J4J2568A02 Series: 25J3J - 90° Replacable End Cap End Mill Assembly
View STEP
Available : 0
Product Series Features:
- Ø2.500" (50 Taper)
- All Eff. / RH Helix
- 14 mm Insert with 4 indexes
- Insert corner: .031"
Notes:
- **Note, OBSOLETE product series.
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 3007152 | 25J3J-25EC172R01 | 23J4J2568R02 | NA | NA | ||||
| 3007151 | 25J3J-25HL648R01 | 23J5J2548R03 | NA | NA | ||||
| 7004211 | PZ-0500 | PZ-0500 | Centering Bushing .531" × .799" × 1.30" | n/a | n/a | n/a | ||
| 7005907 | SD-07-06 | SD07-06 | SHCS, M12 × 1.75 × 60 mm, 10 mm Hex | n/a | n/a | n/a | ||
| 7002873 | SM50-127-10 | SE03-72 | Screw, M5 × 0.8 × .500", T20 Torx drive | n/a | n/a | n/a | ||
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 7002090 | DS-T206B | BLD T20/S7 | T20 Torx Driver Blade, 90 mm OAL, 6 mm Hex | n/a | n/a | n/a |
