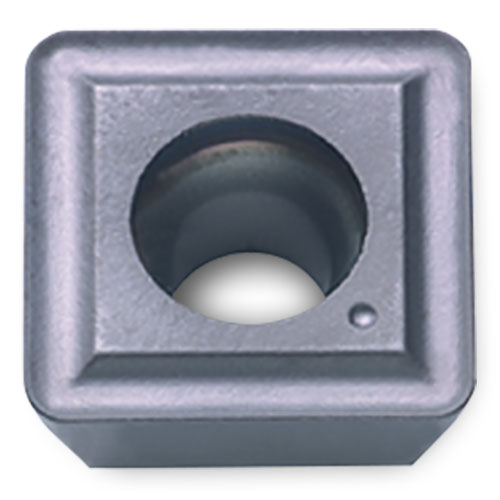

Home > Quad-Drill Plus > SPLT-N > 5101049 SPLT07T308N IN2010

EDP: 5101049
Part: SPLT07T308N IN2010
Series: SPLT-N

Coolant-Thru

Drilling

Application

Cast Iron

RE Corner Radius

0.031

LE Cutting Edge Eff. Length

0.313

IC Inscribed Circle Dia.

0.313

S1 Thickness (Overall)

0.163

NOI Number of Indexes

4

IH Insert Hand

Neutral

Available : 690
International: 10153

Product Series Features:

4 Cornered Insert for Quad Drill+
Cast Iron

Coolant-Thru

Drilling

Application	Cast Iron
RE - Corner Radius	0.031
LE - Cutting Edge Eff. Length	0.313
IC - Inscribed Circle Dia.	0.313
S1 - Thickness (Overall)	0.163
NOI - Number of Indexes	4
IH - Insert Hand	Neutral
