Home > ISO CBN Inserts > WNGA-WZ-LS > 5403116 WNGA060408WZ-LS6 TB670

EDP: 5403116
Part: WNGA060408WZ-LS6 TB670
Series: WNGA-WZ-LS

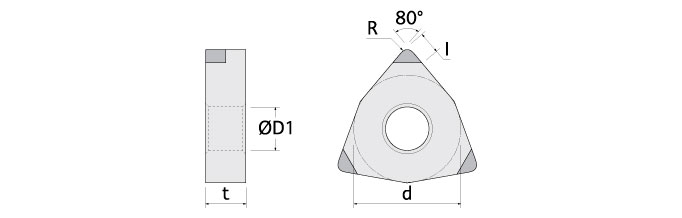

EPSR Insert Included Angle

80

IC Inscribed Circle Dia.

0.375

RE Corner Radius

0.031

L Cutting Edge Length

0.257

LE Cutting Edge Eff. Length

0.083

S Thickness

0.187

IH Insert Hand

Neutral

NOI Number of Indexes

6

fn Cutting Feed Min.

0.0020

fn Cutting Feed Max.

0.0120

ap Cutting Depth Min.

0.002

ap Cutting Depth Max.

0.012

Available : 0
International: 3

Product Series Features:

80° trigon CBN tipped inserts
Wiper technology

Notes:

LS3 = 3 CBN Tips
LS6 = 6 CBN Tips

EPSR - Insert Included Angle	80
IC - Inscribed Circle Dia.	0.375
RE - Corner Radius	0.031
L - Cutting Edge Length	0.257
LE - Cutting Edge Eff. Length	0.083
S - Thickness	0.187
IH - Insert Hand	Neutral
NOI - Number of Indexes	6
fn - Cutting Feed Min.	0.0020
fn - Cutting Feed Max.	0.0120
ap - Cutting Depth Min.	0.002
ap - Cutting Depth Max.	0.012
