Home > HiPos-Plus > BOCT17_P - Insert for Non-Ferrous > 5616026 BOCT170508FR-P IN10K

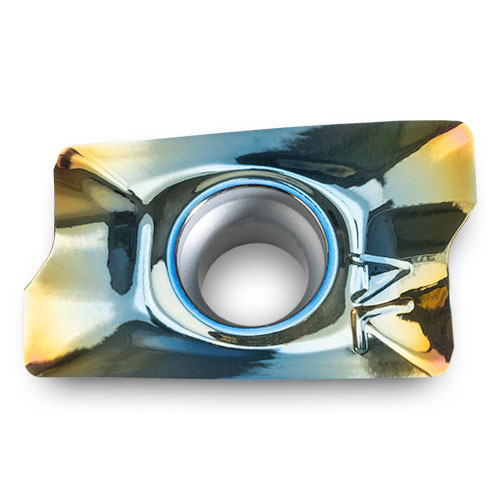

EDP: 5616026
Part: BOCT170508FR-P IN10K
Series: BOCT17_P - Insert for Non-Ferrous

Application

Grd/Pol for Al

RE Corner Radius

0.031

BS Wiper Length

0.100

LE Cutting Edge Eff. Length

0.630

INSL Insert Length

0.728

W1 Insert Width

0.425

S Thickness

0.221

NOI Number of Indexes

2

IH Insert Hand

Right

Available : 950
International: 4998

Product Series Features:

Up-sharp edge & polished rake face
Ideal for non-ferrous materials
2 Indexes

Application	Grd/Pol for Al
RE - Corner Radius	0.031
BS - Wiper Length	0.100
LE - Cutting Edge Eff. Length	0.630
INSL - Insert Length	0.728
W1 - Insert Width	0.425
S - Thickness	0.221
NOI - Number of Indexes	2
IH - Insert Hand	Right

Photo of HiPos-Plus

HiPos-Plus
12J1G - 90° End Mill

Ø1.000 - 1.500"
TopOn Connection
.63" Depth of cut
17 mm Insert with 2 indexes
32-63 Ra finish when engaging the wiper
Insert radii: .015", .031", .062", .093", .125", .156", .187", .250" R

Photo of HiPos-Plus

HiPos-Plus
12J1G - 90° End Mill

Ø25.00 - 40.00 mm
Weldon Shank
16.00 mm Depth of cut
17 mm Insert with 2 indexes
32-63 Ra finish when engaging the wiper
Insert radii: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8, & 6.4 mm R

Photo of HiPos-Plus

HiPos-Plus
12J1G - 90° End Mill

Ø25-40 mm
InnoFit Adaption
17 mm Insert with 2 indexes
Insert corners: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8, & 6.4 mm R
32-63 Ra surface finishes when engaging the wiper (WEP)
16 mm Depth of cut

Photo of HiPos-Plus

HiPos-Plus
12J1G - 90° End Mill (V-Flange)

Ø1.000-1.500"
V-Flange Connection
17 mm Insert with 2 indexes
Insert corners: .015", .031", .062", .093", .125", .187", .250" R
32-63 Ra surface finishes when engaging the wiper (WEP)
.63" Depth of cut

Photo of HiPos-Plus

HiPos-Plus
12J1G - 90° End Mill (Weldon)

Ø0.750 - 2.000"
Weldon Shank
.63" Depth of cut
17 mm Insert with 2 indexes
32-63 Ra finish when engaging the wiper
Insert radii: .015" .031" .062" .093" .125" .156" .187" & .250" R

Photo of HiPos-Plus

HiPos-Plus
12L1G - 75° Roughing End Mill

Ø2.000"
Cylindrical Shank
.15" Depth of cut
17 mm Insert with 2 indexes
Insert radii: .03" R
Uses opposing unused edges of AOMT17 insert, offering the value to obtain 4 indexes.
Ideal for squaring up blocks and general facing.

Photo of HiPos-Plus

HiPos-Plus
12N1G - Chamfer End Mill

Ø1.250" Min.
Weldon Shank
.63" cutting edge length
17 mm Insert with 2 indexes
Cutting Edge Angles: 45°
Included Angles: 90°
Insert radii: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8, 6.4 mm R

Photo of HiPos-Plus

HiPos-Plus
12V1G - Backdraft End Mill (Weldon)

Ø1.000"
Weldon Shank
17 mm Insert with 2 indexes
Insert corners: .015", .031", .062", .093", .125", .187", .250" R
32-63 Ra surface finishes when engaging the wiper (WEP)
.63" Depth of cut

Photo of HiPos-Plus

HiPos-Plus
22J3G - 90° Rough & Finish End Mill

Ø40.00 - 80.00 mm
InnoFit Adaption
17 mm Insert with 2 indexes
All Eff. / RH Helix
Produces smooth blend between stations (visible line but no step on side wall)
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .093" R

Photo of HiPos-Plus

HiPos-Plus
22J3G - 90° Rough & Finish End Mill

Ø1.500 - 2.000"
Weldon Shank
17 mm Insert with 2 indexes
32-63 Ra finish when engaging the wiper
All Eff. / RH Helix
Insert radii: .015", .031", .062", .093" R
Produces smooth blend between stations (visible line but no step on side wall)

Photo of HiPos-Plus

HiPos-Plus
22J3G - 90° Rough & Finish End Mill

Ø2.000"
50 Taper Connection
17 mm Insert with 2 indexes
32-63 Ra finish when engaging the wiper
All Eff. / RH Helix
Insert radii: .015", .031", .062", .093" R
Produces smooth blend between stations (visible line but no step on side wall)
Ideal for roughing SS & Hi-Temps

Photo of HiPos-Plus

HiPos-Plus
22J3G - 90° Rough & Finish Shell Mill

Ø2.000 - 3.000"
Bore & Keyway
17 mm Insert with 2 indexes
32-63 Ra finish when engaging the wiper
All Eff. / RH Helix
Insert radii: .015", .031", .062" & .093" R
Produces smooth blend between stations (visible line but no step on side wall)

Photo of HiPos-Plus

HiPos-Plus
22J3G - 90° Rough & Finish Shell Mill

Ø63.00 -100.00 mm
Bore & Keyway
17 mm Insert with 2 indexes
32-63 Ra finish when engaging the wiper
All Eff. / RH Helix
Insert radii: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8 & 6.4 R
Produces smooth blend between stations (visible line but no step on side wall)

Photo of HiPos-Plus

HiPos-Plus
22J5G - 90° Rough & Finish End Mill

Ø2.000"
50 Taper Connection
17 mm Insert with 2 indexes
32-63 Ra finish when engaging the wiper
1/2 Eff. / RH Helix
Insert radii: .015" .031" .062" .093" .118" .125" .157" .187" & .250" R
Produces smooth wall (no steps)

Photo of HiPos-Plus

HiPos-Plus
2J1G - 90° Face Mill

Ø2.000 - 8.000"
Bore & Keyway
.63" Depth of Cut
17 mm Insert with 2 indexes
32-63 Ra finish when engaging the wiper
Insert radii: .015", .031", .062", .093", .125", .156", .187", .250" R

Photo of HiPos-Plus

HiPos-Plus
2J1G - 90° Face Mill

Ø40.00 - 160.00 mm
Bore & Keyway
16.00 mm Depth of cut
17 mm Insert with 2 indexes
32-63 Ra finish when engaging the wiper
Insert radii: 0.4, 0.8, 1.0, 1.6, 2.4, 3.2, 4.0, 4.8, 6.4 mm R

Photo of HiPos-Plus

HiPos-Plus
2L1G - 75° Roughing Face Mill

Ø4.000"
Bore & Keyway
.15" Depth of cut
17 mm Insert with 2 indexes
Insert Corner: .03" R
Uses opposing unused edges of AOMT17 insert, offering the value to obtain 4 indexes.
Ideal for squaring up blocks and general facing.

Hi-Pos Plus

Operating Guidelines 12J1G, 12L1G, 2J1G 90° Mills

Operating Guidelines 22J_G 90° Extended Flute Mills

Operating Guidelines 12J_1G Chamfer Mills
