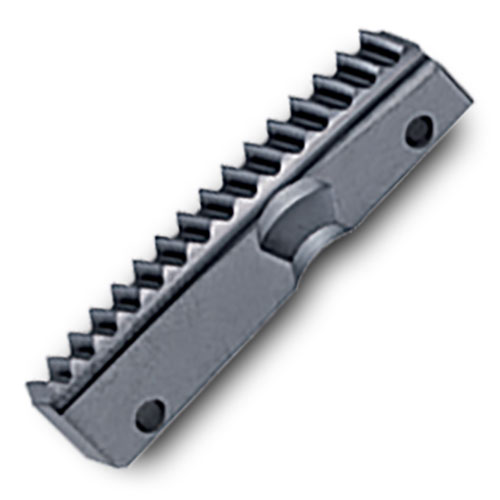

Home > Rapid-Thread > ISO Helical (Internal) > 5616233 LYER32300IS I IN2005

EDP: 5616233
Part: LYER32300IS I IN2005
Series: ISO Helical (Internal)

View STEP

INSL Insert Length

1.260 (32.0 mm)

W1 Width

0.354 (9.0 mm)

S1 Thickness

0.157 (4.0 mm)

PNA Profile Included Angle

60

THFT Thread Form Type

M60 - ISO Metric 60°

TTP Thread Type

Internal

TPT Thread Profile Type

Full

TP Thread Pitch

3.00

NOI Number of Indexes

1

Available : 0
International: 74

Product Series Features:

Helical Rapid Thread Inserts
DIN 13 12-1986, Class: 6H

INSL - Insert Length	1.260 (32.0 mm)
W1 - Width	0.354 (9.0 mm)
S1 - Thickness	0.157 (4.0 mm)
PNA - Profile Included Angle	60
THFT - Thread Form Type	M60 - ISO Metric 60°
TTP - Thread Type	Internal
TPT - Thread Profile Type	Full
TP - Thread Pitch	3.00
NOI - Number of Indexes	1
DXF File
STEP Light File
STEP Detailed File

Inserts
Product Bulletins

	Part Number	Grades
	Part Number	IN2005
	LYER32300IS IN2005
