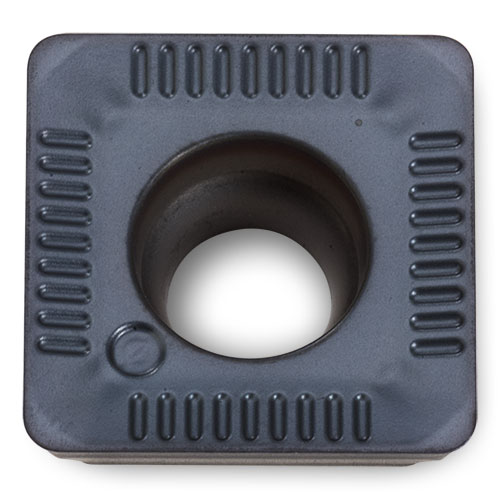

Home > Quad-Bore > SHLT-TN-HR > 5802616 SHLP32-01 A IN30M

EDP: 5802616
Part: SHLP32-01 A IN30M
Series: SHLT-TN-HR

Application

Multi-Purpose

RE Corner Radius

0.031

IC Inscribed Circle Dia.

0.375

S Thickness

0.150

NOI Number of Indexes

4

IH Insert Hand

Neutral

Available : 0
International: 20

Product Series Features:

4 Cornered Insert for Quad Bore
Steel & General Purpose

Application	Multi-Purpose
RE - Corner Radius	0.031
IC - Inscribed Circle Dia.	0.375
S - Thickness	0.150
NOI - Number of Indexes	4
IH - Insert Hand	Neutral
STEP Light File
STEP Detailed File
