Home > HiPos-Plus > BOCT09_P - Insert for Non-Ferrous > 5812702 BOCT09T304FR-P I IN10K

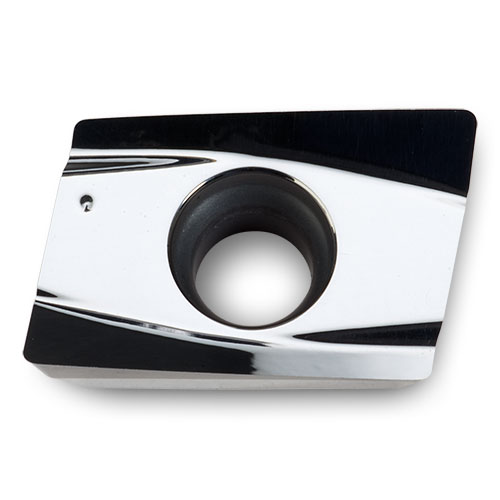

EDP: 5812702
Part: BOCT09T304FR-P I IN10K
Series: BOCT09_P - Insert for Non-Ferrous

Application

Grd/Pol for Al

RE Corner Radius

0.015

LE Cutting Edge Eff. Length

0.350

INSL Insert Length

0.417

W1 Insert Width

0.260

S Thickness

0.146

NOI Number of Indexes

2

IH Insert Hand

Right

Available : 100
International: 1626

Product Series Features:

Up-sharp edge & polished rake face
Ideal for non-ferrous materials
2 Indexes

Application	Grd/Pol for Al
RE - Corner Radius	0.015
LE - Cutting Edge Eff. Length	0.350
INSL - Insert Length	0.417
W1 - Insert Width	0.260
S - Thickness	0.146
NOI - Number of Indexes	2
IH - Insert Hand	Right

Photo of HiPos-Plus

HiPos-Plus
12J1P - 90° End Mill

Ø.500-1.500"
Weldon Shank
9 mm Insert with 2 indexes
Insert corners: .015", .031", .062", .078", .120" R
32-63 Ra surface finishes when engaging the wiper (WEP)
.35" Depth of cut

Photo of HiPos-Plus

HiPos-Plus
12J1P - 90° End Mill

Ø.625-1.250"
TopOn Connection
9 mm Insert with 2 Indexes
Insert Corners: .015" .031" .062" .078" & .120"R
32-63 Ra surface finishes when engaging the wiper (WEP)
.35" Depth of cut

Photo of HiPos-Plus

HiPos-Plus
12J1P - 90° End Mill

Ø12-25 mm
Weldon Shank (Metric)
9 mm Insert with 2 indexes
Insert corners: 0.4, 0.8, 1.6, 2.0 & 3.1 mm R
32-63 Ra surface finishes when engaging the wiper (WEP)
9 mm Depth of cut

Photo of HiPos-Plus

HiPos-Plus
12J1P - 90° End Mill

Ø12-35 mm
TopOn Connection
9 mm Insert with 2 indexes
Insert Corners: 0.4, 0.8, 1.6, 2.0 & 3.1 mm R
32-63 Ra surface finishes when engaging the wiper (WEP)
9 mm Depth of cut

Photo of HiPos-Plus

HiPos-Plus
12J1P - 90° End Mill

Ø16.00 - 32.00 mm
InnoFit Adaption
9 mm Insert with 2 Indexes
Insert Corners: .015" .031" .062" .078" & .120"R
32-63 Ra surface finishes when engaging the wiper (WEP)
9.0 mm Depth of cut

Photo of HiPos-Plus

HiPos-Plus
12J1P - 90° End Mill

Ø16-25 mm
Chip Surfer Connection
9 mm Insert with 2 indexes
Insert Corners: 0.4, 0.8, 1.6, 2.0 & 3.1 mm R
32-63 Ra surface finishes when engaging the wiper (WEP)
9 mm Depth of cut

Photo of HiPos-Plus

HiPos-Plus
12J1P - 90° End Mill

Ø.500-1.500"
Cylindrical Shank
9 mm Insert with 2 indexes
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .078", .120" R
.35" Depth of cut

Photo of HiPos-Plus

HiPos-Plus
12L1P - 70° Roughing End Mill

Ø2.00"
Cylindrical Shank
9 mm Insert with 2 indexes
Insert Corner: .01" R
Uses opposing unused edges of BOMT09 insert, offering the value to obtain 4 indexes.
Ideal for squaring up blocks and general facing.
.12" Depth of cut

Photo of HiPos-Plus

HiPos-Plus
22J3P - 90° End Mill

Ø1.000-1.500"
Weldon Shank
9 mm Insert with 2 indexes
Insert corners: .015", .031", .062", .120" R
All Eff. / RH Helix

Photo of HiPos-Plus

HiPos-Plus
22J3P - 90° End Mill

Ø25-32 mm
Weldon Shank (Metric)
9 mm Insert with 2 indexes
Insert corners: 0.4, 0.8, 1.6, 3.2 mm R
All Eff. / RH Helix

Photo of HiPos-Plus

HiPos-Plus
22J3P - 90° End Mill

Ø25.00 - 40.00 mm
InnoFit Adaptor
9 mm Insert with 2 indexes
Insert corners: 0.4, 0.8, 1.6, 3.2 mm R
All Eff. / RH Helix

Photo of HiPos-Plus

HiPos-Plus
2J1P - 90° Face Mill

Ø1.500-3.000"
9 mm Insert with 2 indexes
.35" Depth of Cut
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .078", .120" R

Photo of HiPos-Plus

HiPos-Plus
2J1P - 90° Face Mill

Ø32-100 mm
9 mm Insert with 2 indexes
9 mm Depth of Cut
32-63 Ra surface finishes when engaging the wiper (WEP)
Insert corners: 0.4, 0.8, 1.6, 2.0 & 3.1 mm R

Photo of HiPos-Plus

HiPos-Plus
2J5P - 90° Adjustable Finish Mill

Ø32.00 - 80.00mm
9 mm Insert with 2 indexes
9.00mm Depth of Cut
15-32 Ra surface finishes when engaging the wiper (WEP)
Insert corners: .015", .031", .062", .078", .120" R
Cutter design mills on face and shoulder
