Home > Rapid-Thread > BSPT Helical (External & Internal) > 5813176 LYER38110BT I IN2005

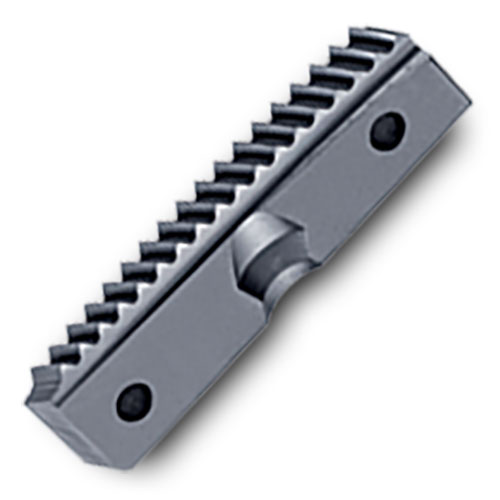

EDP: 5813176
Part: LYER38110BT I IN2005
Series: BSPT Helical (External & Internal)

INSL Insert Length

1.496 (38.0 mm)

W1 Width

0.469 (11.9 mm)

S1 Thickness

0.197 (5.0 mm)

PNA Profile Included Angle

55

THFT Thread Form Type

BSPT55 - British Std. Pipe Thread 55°

TTP Thread Type

External & Internal

TPT Thread Profile Type

Full

TPI Threads Per Inch

11

NOI Number of Indexes

1

Available : 0

Product Series Features:

Helical Rapid Thread Inserts
B.S.21-1957

INSL - Insert Length	1.496 (38.0 mm)
W1 - Width	0.469 (11.9 mm)
S1 - Thickness	0.197 (5.0 mm)
PNA - Profile Included Angle	55
THFT - Thread Form Type	BSPT55 - British Std. Pipe Thread 55°
TTP - Thread Type	External & Internal
TPT - Thread Profile Type	Full
TPI - Threads Per Inch	11
NOI - Number of Indexes	1

Inserts
Product Bulletins

	Part Number	Grades
	Part Number	IN2005
	LYER38110BT IN2005

NEW-129-1 Rapid Thread Helical
