Home > DiPos-Tetra > ENHU05-PH - Insert for SS/HiTemp/Ti > 6154125 ENHU050308R-PH IN2505

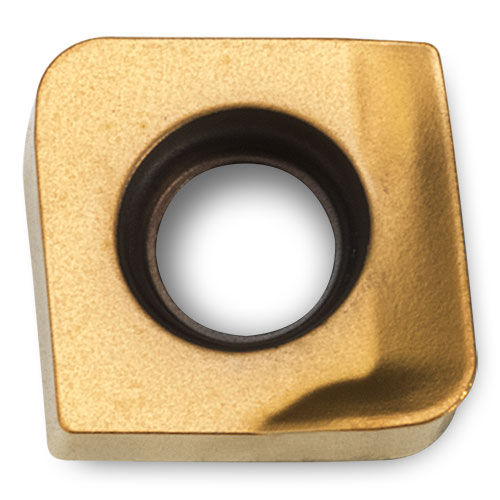

EDP: 6154125
Part: ENHU050308R-PH IN2505
Series: ENHU05-PH - Insert for SS/HiTemp/Ti

Application

SS/Hi-Temp/Ti

RE Corner Radius

0.031

BS Wiper Length

0.015

LE Cutting Edge Eff. Length

0.180

IC Inscribed Circle Dia.

0.203

S Thickness

0.133

NOI Number of Indexes

2

IH Insert Hand

Right

Available : 350
International: 677

Product Series Features:

Keen edge for SS/Hi-Temp/Ti
Pressed rake face geometry promotes efficient chip formation
Integrated wiper flats
2 Indexes

Application	SS/Hi-Temp/Ti
RE - Corner Radius	0.031
BS - Wiper Length	0.015
LE - Cutting Edge Eff. Length	0.180
IC - Inscribed Circle Dia.	0.203
S - Thickness	0.133
NOI - Number of Indexes	2
IH - Insert Hand	Right

Choose a Section

DiPos-Tetra
1TJ1C - 90° & Hi-Feed End Mill

Ø.625-1.000"
Weldon Shank
5 mm Insert with 2 indexes
90°: .18" DOC, Hi-Feed: .02" DOC
Insert corners: .008" .015" .031" R & Hi-Feed
32-63 Ra surface finishes when engaging the wiper (WEP)
Double-Dovetail-Pocket fosters easy insert indexing & eliminates insert screw stress

DiPos-Tetra
1TJ1C - 90° & Hi-Feed End Mill

Ø.500-1.000"
Chip Surfer Connection
5 mm Insert with 2 indexes
90°: .18" DOC, Hi-Feed: .02" DOC
Insert corners: .008" .015" .031" R & Hi-Feed
32-63 Ra surface finishes when engaging the wiper (WEP)
Double-Dovetail-Pocket fosters easy insert indexing & eliminates insert screw stress

DiPos-Tetra
1TJ1C - 90° & Hi-Feed End Mill

Ø.625-1.000"
TopOn Connection
5 mm Insert with 2 indexes
90°: .18" DOC, Hi-Feed: .02" DOC
Insert corners: .008" .015" .031" R & Hi-Feed
32-63 Ra surface finishes when engaging the wiper (WEP)
Double dovetail pocket fosters easy insert indexing & eliminates insert screw stress

DiPos-Tetra
1TJ1C - 90° & Hi-Feed End Mill

Ø.500-1.000"
Cylindrical Shank
5 mm Insert with 2 indexes
90°: .18" DOC, Hi-Feed: .02" DOC
Insert corners: .008" .015" .031" R & Hi-Feed
32-63 Ra surface finishes when engaging the wiper (WEP)
Double dovetail pocket fosters easy insert indexing & eliminates insert screw stress

DiPos-Tetra
1TJ1C - 90° & Hi-Feed End Mill (Metric)

Ø12.00 - 25.00 mm
TopOn Connection
5 mm Insert with 2 indexes
90°: 4.70 mm DOC, Hi-Feed: 0.50 mm DOC
Insert corners: .008" .015" .031" R & Hi-Feed
32-63 Ra surface finishes when engaging the wiper (WEP)
Double dovetail pocket fosters easy insert indexing & eliminates insert screw stress

DiPos-Tetra
1TJ1C - 90° & Hi-Feed End Mill (Metric)

Ø12.00 - 16.00 mm
Cylindrical Shank
5 mm Insert with 2 indexes
90°: 4.70 mm DOC, Hi-Feed: 0.50 mm DOC
Insert corners: .008" .015" .031" R & Hi-Feed
32-63 Ra surface finishes when engaging the wiper (WEP)
Double dovetail pocket fosters easy insert indexing & eliminates insert screw stress

DiPos-Tetra
1TJ1C - 90° & Hi-Feed End Mill (Metric)

Ø16.00 - 32.00 mm
Weldon Shank
5 mm Insert with 2 indexes
90°: 4.70 mm DOC, Hi-Feed: 0.50 mm DOC
Insert corners: .008" .015" .031" R & Hi-Feed
32-63 Ra surface finishes when engaging the wiper (WEP)
Double-Dovetail-Pocket fosters easy insert indexing & eliminates insert screw stress

DiPos-Tetra
1TJ1C - 90° End Mill for Live Tools & Swiss

Ø.750-1.000"
Chip Surfer Connection
5 mm Insert with 2 indexes
90°: .18" DOC, Hi-Feed: .02" DOC
Insert corners: .008" .015" .031" R & Hi-Feed
32-63 Ra surface finishes when engaging the integrated wiper (WEP)
Double-Dovetail-Pocket fosters easy insert indexing & eliminates insert screw stress
Large diameter heads fit small ER Shanks
Ideal for milling flats and hex on round stock

DiPos-Tetra
1TJ1C - 90° End Mill for Swiss & Live Tooling

Ø.750-2.000"
Cylindrical Shank
.18" Depth of cut
5 mm Insert with 2 indexes
Insert corners: .008" .015" & .031" R
Shank ideal for ER Spring collets
32-63 Ra surface finishes when engaging the wiper (WEP)
Double-Dovetail-Pocket fosters easy insert indexing & eliminates insert screw stress

DiPos-Tetra
TJ1C - 90° & Hi-Feed Face Mill

Ø1.500-2.000"
5 mm Insert with 2 indexes
.18" 90° Depth of Cut
.02" Hi-Feed Depth of Cut
Insert corners: .008" .015" .031" R & Hi-Feed
32-63 Ra surface finishes when engaging the wiper (WEP)
Double dovetail pocket fosters easy insert indexing & eliminates insert screw stress

DiPos-Tetra
TJ1C - 90° & Hi-Feed Face Mill (Metric)

Ø32.00 - 40.00 mm
5 mm Insert with 2 indexes
4.70 mm 90° Depth of Cut
0.50 mm Hi-Feed Depth of Cut
Insert corners: .008" .015" .031" R & Hi-Feed
32-63 Ra surface finishes when engaging the wiper (WEP)
Double dovetail pocket fosters easy insert indexing & eliminates insert screw stress
