Home > Rapid-Thread > ISO Helical (Internal) > 6214606 LYER37300IS I IN2005

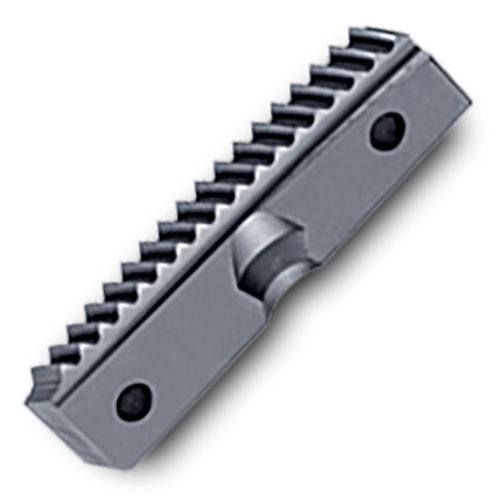

EDP: 6214606
Part: LYER37300IS I IN2005
Series: ISO Helical (Internal)

INSL Insert Length

1.457 (37.0 mm)

W1 Width

0.469 (11.9 mm)

S1 Thickness

0.197 (5.0 mm)

PNA Profile Included Angle

60

THFT Thread Form Type

M60 - ISO Metric 60°

TTP Thread Type

Internal

TPT Thread Profile Type

Full

TP Thread Pitch

3.00

NOI Number of Indexes

1

Available : 0
International: 10

Product Series Features:

Helical Rapid Thread Inserts
DIN 13 12-1986, Class: 6H

INSL - Insert Length	1.457 (37.0 mm)
W1 - Width	0.469 (11.9 mm)
S1 - Thickness	0.197 (5.0 mm)
PNA - Profile Included Angle	60
THFT - Thread Form Type	M60 - ISO Metric 60°
TTP - Thread Type	Internal
TPT - Thread Profile Type	Full
TP - Thread Pitch	3.00
NOI - Number of Indexes	1

Inserts
Product Bulletins

	Part Number	Grades
	Part Number	IN2005
	LYER37300IS IN2005

NEW-129-1 Rapid Thread Helical
