Home > Rapid-Thread > UN Helical (Internal) > 6214614 LYER38120UN I IN2005

EDP: 6214614

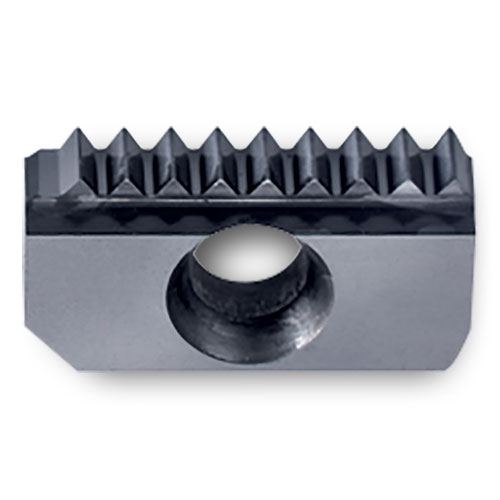

Part: LYER38120UN I IN2005
Series: UN Helical (Internal)

View STEP

INSL Insert Length

1.496 (38.0 mm)

W1 Width

0.469 (11.9 mm)

S1 Thickness

0.197 (5.0 mm)

PNA Profile Included Angle

60

THFT Thread Form Type

UN60 - Unified 60°

TTP Thread Type

Internal

TPT Thread Profile Type

Full

TPI Threads Per Inch

12

NOI Number of Indexes

1

Available : 20
International: 18

Product Series Features:

Rapid Thread Inserts
ANSI B1, 3M-1986, Class: 2B

INSL - Insert Length	1.496 (38.0 mm)
W1 - Width	0.469 (11.9 mm)
S1 - Thickness	0.197 (5.0 mm)
PNA - Profile Included Angle	60
THFT - Thread Form Type	UN60 - Unified 60°
TTP - Thread Type	Internal
TPT - Thread Profile Type	Full
TPI - Threads Per Inch	12
NOI - Number of Indexes	1
DXF File
STEP Light File
STEP Detailed File

Inserts
Product Bulletins

	Part Number	Grades
	Part Number	IN2005
	LYER38120UN IN2005
