EDP: 2930651 Part: 18V-5016TQRA60 V IN2530 Series: 18V - Dovetail Tip

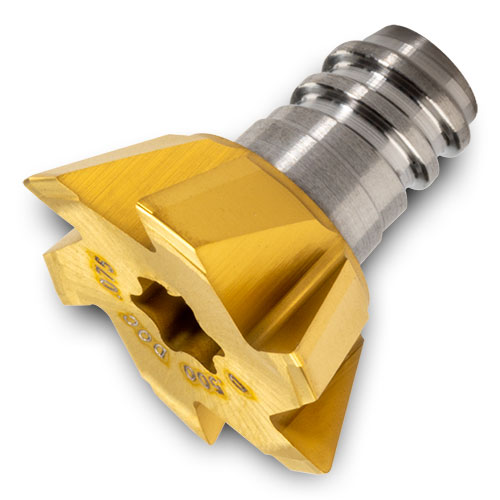

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 44
Product Series Features:
- Ø.500-1.090"
- Chip Surfer Connection
- 6 Flute
- Back-Angle: 5°, 10°, 15°, 20°, 27.5°, 30°, 45° & 60°
- Included Angle: 10°, 20°, 30°, 40°, 55°, 60°, 90° & 120°
Notes:
- When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
- *** Grade IN1530 is phasing out, replaced by Grade IN2005. See Product Bulletin tab. ***
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 7000268 | DS-T20/3L | T-20/3 | T20 Short Arm L-Key | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 1200284 | DS-T2038SKT | BIT SOCKET T20 3/8" DRIVE | T20 Torx Bit Socket, 3/8" Square Drive | Optional Torque Wrench Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 1204734 | DS-38SKT9X12 | INSERT TOOL 3/8" 9X12MM | 90° Socket Adapter for Torx Drive Heads, 3/8" Square Drive, 9 x 12mm Connection | Optional Torque Wrench Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 3340289 | WRENCHTORQUE5-50Nm9X12 | TORQUE WRENCH 5-50NM 9X12 | Adjustable Torque Handle (5-50 Nm) for use with Chip Surfer Open End Wrench Heads & Torx Drive Heads, 9 x 12 mm Drive Adaption | Optional Torque Wrench Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 7001304 | DS-T20T | DS-0034 | T20 Torx Screw Driver (Optional) | T-Style Handle | n/a | n/a | n/a | |
| 7001303 | DS-T20B | DS-0035 | T20 Torx Bit 1.00" OAL; 1/4" Hex drive | Optional Accessory Item; Sold Separately | n/a | n/a | n/a |
