Home > RapidThread > 4_Y_UN_RA - Thread Mill Tips > 3317685 47Y-28UNTQRA13 IN2005

EDP: 3317685

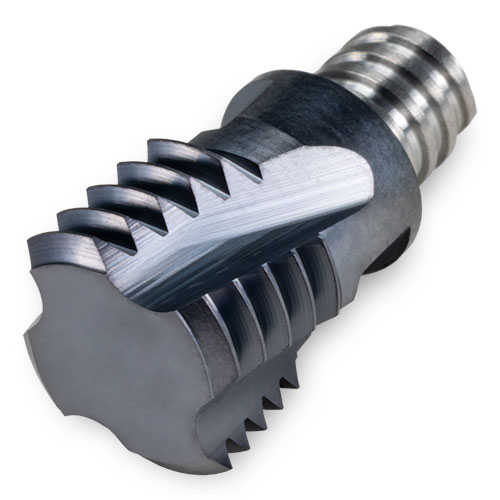

Part: 47Y-28UNTQRA13 IN2005
Series: 4_Y_UN_RA - Thread Mill Tips

DC Cutting Dia.

0.394

TP Thread Pitch

28.00

UNEF Unified Extra Fine

1/2

APMX Depth of Cut Max.

0.217

LF Functional Length

0.502

ZEFF Eff. Teeth

4

CCMS Connection Code Machine Side

Chip Surfer T05

TQ Torque

60 in lb

DHUB Hub Dia.

0.32

CSP Coolant

No

FIGURE Figure

1

Available : 0
International: 24

Product Series Features:

Internal Thread Milling of UN Threads
Ø0.394" - 0.787" (10 - 20 mm)
Chip Surfer Connection
3 - 5 Flute

Notes:

When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.

DC - Cutting Dia.	0.394
TP - Thread Pitch	28.00
UNEF - Unified Extra Fine	1/2
APMX - Depth of Cut Max.	0.217
LF - Functional Length	0.502
ZEFF - Eff. Teeth	4
CCMS - Connection Code Machine Side	Chip Surfer T05
TQ - Torque	60 in lb
DHUB - Hub Dia.	0.32
CSP - Coolant	No
FIGURE - Figure	1
