EDP: 3027427 Part: 12P1R020044W5R00 Series: 12_1R - Chamfer End Mill

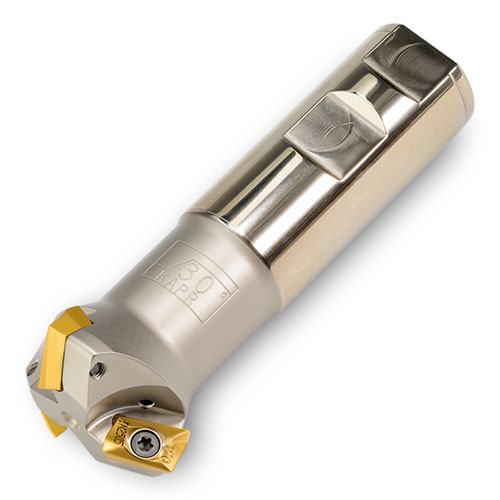

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
View STEP
Available : 0
International: 5
Product Series Features:
- Ø20 mm Min.
- Weldon Shank (Metric)
- 13 mm Insert with 2 indexes
- 11 mm cutting edge length
- 15° 30° 45° 60° & 75° Cutting Edge Angles (KAPR)
- 150° 120° 90° 60° & 30° Included Angles (PRFA)
| EDP | Part Number | ISO Number | Description | Additional Info | DXF File | STEP Light File | STEP Detailed File | |
|---|---|---|---|---|---|---|---|---|
| 2920530 | DS-A00-.25-T | DS-A00-.25-T | Driver Handle for use with multi-component Qwik Torque system Preset Torque Adapters over 2.0Nm | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 2921331 | DS-T10B1 | DS-T10B1 | T10 Torx Bit 2.00" OAL; 1/4" Hex drive | Optional Accessory Item; Sold Separately | n/a | n/a | n/a | |
| 2920526 | DT-30-.25 | DT-30-.25 | Torque Adapter Unit preset to 30 in lb (3.4 N·m) for use with the multi-component Qwik Torque system | Optional Accessory item; Sold Separately | n/a | n/a | n/a | |
| 7070049 | SM35-076-10 | SM35-076-10 | Screw, M3.5 × 0.6 × 7.6 mm, T10 Torx drive | n/a | n/a | n/a | ||
| 7019679 | DS-A00T | DS-A00T | Magnetic Combination Straight & T-Style Handle with (2) 6 mm Hex Drive slots (1) Bit Holding Slot | n/a | n/a | n/a | ||
| 7019681 | DS-T106B | BLD T10/S7 | T10 Torx Bit; 90 mm OAL; 6 mm Hex drive | n/a | n/a | n/a |
